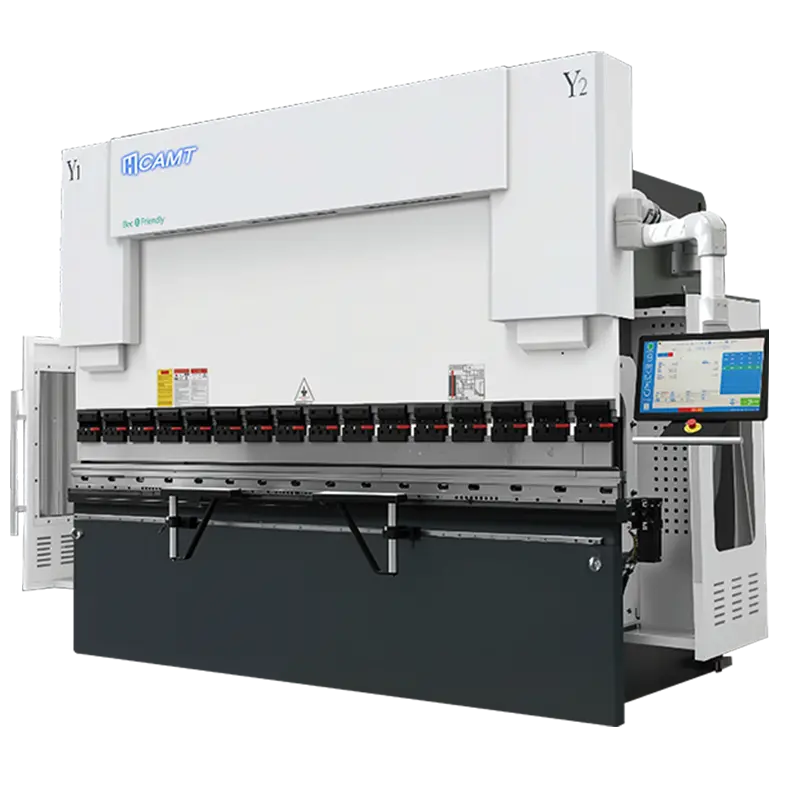

Experts CNC Press Brake Genius 4-6 Axis

Experts CNC Press Brake Genius 4-6 Axis

Automated Z1/Z2 backgauge positioning, 2D programming with 3D bend verification, and a full-servo hydraulic drive — for fabricators running mixed batches to tight angle tolerances.

  • Genius 4–6 Axis CNC Press Brake
  • Multi-Axis CNC Press Brake Built for Small Batches and Tight Angles
  • 6+1 Axis CNC Press Brake with Automated Z1/Z2 Backgauge
Chat Now
Experts CNC Press Brake Genius 4-6 Axis
Download Brochure

Run a different part every hour and still hold the angle. The Genius 4–6 axis CNC press brake repositions its Z1/Z2 backgauge fingers to each programmed part size automatically, so operators stop re-setting stops by hand between batches — the single biggest place small-batch, high-mix production loses time.

Build the bend in 2D, watch the whole sequence play out in 3D before the first stroke, and let the electro-hydraulic servo drive back off between strokes instead of holding full pressure. That combination is what keeps bending accuracy at ±0.5° and takes up to 40% off energy use. Control is your choice: the SCS900 system ships standard with global service support, or step up to DELEM DA66T / CYBELEC CYBTOUCH 15S.

Main Servo CNC Press Brake Series Specification

Model Nominal Pressure (kN) Max. Bending Width (mm) Distance Between Uprights (mm) Throat Depth (mm) Cylinder Stroke (mm) Opening Height (mm) Die Setting Height (mm) Main Power (kW) Oil Volume (L) Speed (mm/s) Dimensions (mm) Weight (kg)
Approaching Working Returning Length Width Height
40T/1600400160012003001504505455.51602300–151402200145021554300
70T/1600700160012003501704605557.51602300–151402200145021554500
70T/2500700250020003501704605557.52252300–151403220178026505500
110T/2500110025002000400200490585112252200–151403240178026807000
110T/3200110032002700400200490585113502200–151404030178026808000
110T/4100110041003300400200490585113502200–1514048301780278010000
130T/3200130032002700400200490585113502000–151404030179027508300
130T/4100130041002700400200490585114302000–1514048301790285011300
130T/5000130050004100400200490585115501800–159058301790310014000
130T/6000130060004800400200490585115501800–159068301790320016000
170T/3200170032002700400200490585153502000–1514040501800273010100
170T/4100170041003300400200490585154302000–1514047001800283012100
170T/500017005000410040020049058518.55501600–159057001800308015000
170T/600017006000500040020049058518.55501600–159067001800318018000
220T/320022003200270040020049058518.53501600–1314040201850285012000
220T/410022004100330040020049058518.54301600–1314048201850310013900
220T/500022005000410040020049058522.55501300–139058201850325018200
220T/600022006000500040020049058522.55501300–139068201850335021000
250T/320025003200270045025054063522.53501300–1311040501860300014000
250T/410025004100330045025054063522.54301300–1311048501860310016000
250T/500025005000380045025054063522.55501200–138058501860325021000
250T/600025006000500045025052061522.55501200–138068501860335024000
300T/320030003200270045025052061524.54601000–139046002260340017700
300T/410030004100330045025052061524.54601000–139054002260350020300
300T/500030005000380050025052061524.5550900–139064302260368026100
300T/600030006000500050025052061524.5550900–139074302260385030400

Looking for more detailed specifications or a configuration that better matches your production needs? Contact our team to discuss additional parameters, customization options, or to receive a tailored quotation. We’re ready to help you find the right press brake solution.

Chat Now

Key Advantages of CAMT Experts CNC Press Brake Genius 4-6 Axis

Automated Backgauge Positioning on Setup Change

The 4–6 axis control positions the Z1 and Z2 backgauge axes to the new workpiece dimensions directly from the program, at a travel speed of 600 mm/s. Positioning accuracy of ±0.03 mm is maintained by ball screw, linear guide and rack transmission, so adjustment between batches is performed by the control rather than manually, and the micrometric double-stop fingers are reserved for fine correction of complex bends.

Bend Sequence Verified in 3D Before Production

Bends are programmed in 2D on the 17" touch control and then verified in 3D, covering tool station assignment, bending sequence and collision risk, before the first blank is loaded. Tool selection errors and interference are identified at the simulation stage instead of appearing as scrapped workpieces at the machine.

Uniform Bend Angles Along the Full Workpiece Length

Multi-point mechanical crowning compensates worktable and ram deflection at independently adjustable points along the length of the machine. Bend angles remain uniform across long workpieces, so downstream fitting and welding require no additional clamping or shimming to close the joint gap.

Power Drawn Only During Ram Movement

The hybrid servo drive delivers power during ram movement instead of maintaining full hydraulic pressure throughout the cycle, with regenerative power recovery on the return stroke. This is the basis of the published reduction in energy consumption of up to 40%, and of the 20–30% faster response compared with conventional hydraulic systems. Both figures can be verified against a site energy meter.

Consistent Angle Accuracy Across the Batch

BOSCH-REXROTH proportional valves are operated in closed loop against position feedback from GIVI magnetic scales with 1 μm resolution, and the control provides a dedicated angle-correction interface. Bending accuracy is held to ±0.5°, so in-process gauging of every part can be reduced to sampling.

Laser Guarding Without Reducing Approach Speed

The optional DSP laser guard projects a block-shaped protective zone below the tool tip that moves synchronously with the die, permitting full-speed ram descent as long as no object enters the zone. Response time is 5 ms, with a rating of up to CAT.4 / SIL3 and compliance with EN 12622. Approach speed does not have to be reduced for safety reasons.

FEA & Stress Analysis of Press Brake

FEA & Stress Analysis of Press Brake

Stress Analysis & Finite Element Analysis

CAMT FEA plays a pivotal role by optimizing structures through stress distribution analysis to identify and reinforce high-stress areas, enhancing strength while minimizing material waste; verifying performance by predicting deformation under extreme loads (e.g., 600 tons) to ensure precision and stability for Y1/Y2 synchronization; assessing safety by evaluating stress concentration to mitigate fatigue or fracture risks for long-term reliability; and conducting dynamic analysis to simulate transient loads and vibrations in complex scenarios like tandem bending or high-speed operations, optimizing servo motor response and overall machine stability.

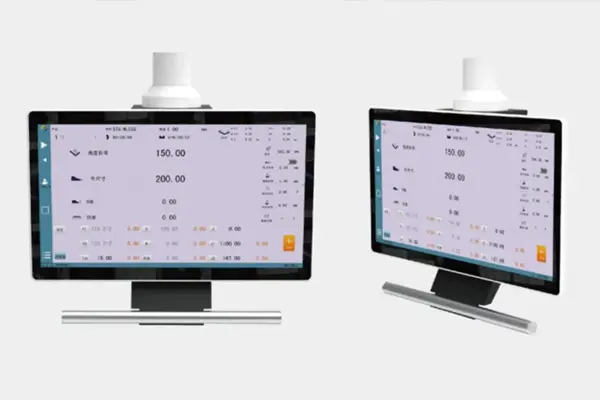

Taiwan TECHMATION Bending Automation SCS900

Especially for 6+1 Axis with 2D Graphic Programming & 3D Display Fuction

  • Advanced Core Architecture: Linux-driven performance backed by PLC+C Motion programming, high-precision CPU processing, and EtherCAT communication for lightning-fast response.
  • Proactive Safety & Smart Pathing: Automated pre-construction checks, high-precision path planning, and real-time error correction guarantee flawless execution every time.
  • Cloud-Ready & Seamless Workflow: Enjoy automated product naming, secure cloud data storage, and effortless backward/forward compatibility between old and new products.
  • Versatile Deployment: 4G connectivity, cloud integration, and support for both standalone and networked operations adapt instantly to diverse engineering demands.
Taiwan TECHMATION Bending Automation SCS900
DELEM DA66T Touch 2D Graphical Control

DELEM DA66T Touch 2D Graphical Control

DELEM CNC Control System

  • 17" High-Resolution Color TFT Display: Crystal-clear visuals that reduce eye strain and make complex layouts easy to view.
  • 2D Graphical Touch Programming: Intuitive touch controls that cut programming time and speed up operator training.
  • 3D Simulation & Production View: Real-time 3D visualization that prevents collisions and eliminates costly trial runs.
  • Full Windows Application Suite: A familiar, robust OS environment that integrates smoothly with your office workflows.
  • Delem Modusys Scalability: Modular expandability that easily adapts to your future production upgrades.
  • Flexible USB & Peripheral Interfacing: Quick file transfers and seamless connection to standard workshop peripherals.
  • Flexible USB & Peripheral Interfacing: Quick file transfers and seamless connection to standard workshop peripherals.
  • Sensor Bending & Correction Interface: Real-time angle compensation that ensures consistent high-precision results.

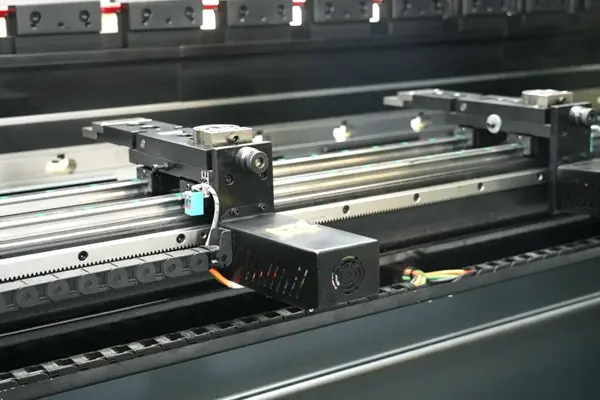

CAMT Intelligent 6 Axes CNC Backgauge System

Automation CHTR Rear BackGauge

  • High-Precision Mechanical Structure: Built with premium ball screws, linear guides, and stable racks to deliver ±0.03 mm mechanical accuracy, ensuring pinpoint positioning and stability during heavy-duty bending.
  • High-Speed Axis Movement: Features Z1-Z2 axes moving at 600 mm/s and the X-axis at 300 mm/s, significantly boosting throughput and efficiency for high-intensity production schedules.
  • Versatile Backgauge Fingers: Equipped with double-stop fingers and micrometric adjustment capabilities, allowing fine-tuned precision for complex, multi-stage bending tasks.
  • Flexible 6+1 Axis Control: Supports up to 6+1 axes (X, R, Z1, Z2, etc.), delivering exceptional operational flexibility and a broader processing window for diverse workpieces.
  • Long-Term Reliability: Engineered with premium transmission components to ensure sustained operational stability while minimizing downtime and maintenance costs.
  • The Ultimate Choice: A high-performance, future-ready solution designed for modern, high-efficiency press brake operations.

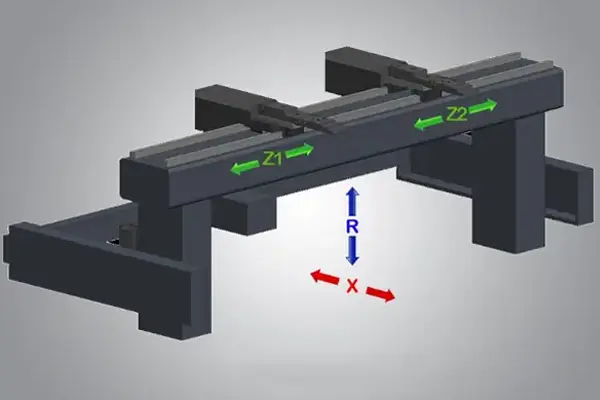

BackGauge System OverView

Designed Automated Metalworking, featuring control over X, R, Z1, and Z2 axes

  • Advanced 6-Axis CNC Control: Accurately synchronizes the left and right hydraulic cylinders (Y1/Y2), backgauge depth (X), height (R), and lateral positioning (Z1/Z2), ensuring flawless multi-angle metal bending with absolute synchronization.
  • Real-Time Closed-Loop Feedback: Integrates high-precision sensors to instantly monitor sheet positioning and bending angles, automatically compensating for material springback to guarantee first-part accuracy.
  • Intelligent Path Optimization: Powered by advanced programming algorithms that calculate the most efficient motion trajectories, minimizing non-cutting cycle times and maximizing overall productivity.

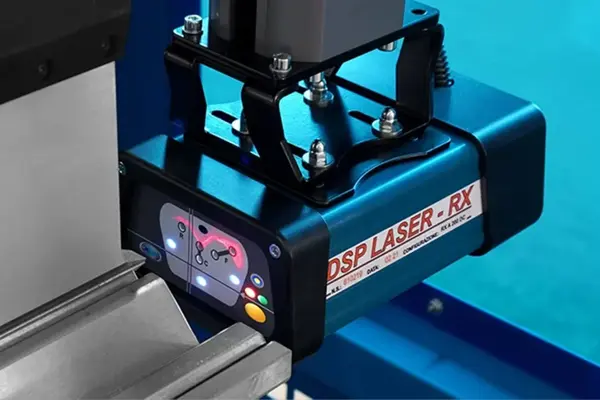

DSP Laser Safety Protection

More Than 10 Years R&D CNC Control

The optional CAMT® DSP laser guarding system completely eliminates the safety risks associated with high-speed slide movement by establishing an intelligent, block-shaped protective zone. This dynamic safety zone is positioned directly below the tool tip and moves synchronously with the upper mold. As the slide descends at high speed, any obstruction instantly enters this DSP-generated protective field before it can ever make contact with the tool tip, ensuring maximum operator safety without sacrificing production speed.

DSP Laser Safety Protection
Press Brake Motorized Crowning

Precise Effectiveness & Muti-Point Crowning of Press Brake Machine

Mechanic Compensation

Uneven bending angles and angular errors across long workpieces are among the costliest headaches in sheet metal fabrication. Our intelligent compensation system is engineered to eliminate these challenges completely:

  • Zero Angular Deviation: Actively neutralizes worktable and slider deflection under heavy tonnage, guaranteeing consistent, uniform bending angles from edge to edge—especially on long and demanding workpieces.
  • Precision Multi-Point Control: Features independently adjustable mechanical compensation points along the entire length of the worktable, allowing fine-tuned correction for every individual segment.
  • Flawless Straightness: Dramatically enhances linear straightness and batch consistency for extended parts, helping you eliminate rework and scrap.

Fully ESTUN FULL SERVO DRIVE System for Hydraulic Press Brake

Italy Importaed Maganetic Ruler - Precise Postioning and On-time Reaction

Engineered for absolute precision, intelligent energy-saving, and reliable operation, our advanced CNC control system transforms your sheet metal fabrication with core competitive advantages:

  • Precise Motion Control: Delivers multi-axis synchronization and absolute die parallelism for flawless, repeatable angles.

  • Dynamic & Fast Response: Reacts instantly to load changes and material springback, slashing cycle times and boosting daily output.

  • Energy Efficiency & Management: Optimizes power consumption across all cycles to significantly lower your operating costs.

  • Long-Term Stability: Combines robust industrial algorithms with closed-loop feedback to prevent drift and ensure consistent quality.

  • Seamless Integration: Features a flexible, modular architecture that integrates effortlessly into your existing press brake setup.

Fully ESTUN FULL SERVO DRIVE System for Hydraulic Press Brake
CAMT Party with Top-Tier Closed- Loop Control Technology

CAMT Party with Top-Tier Closed- Loop Control Technology

Germany BOSCH-REXROTH Hydraulic System

  • Micrometric Precision (±0.01mm): High-performance proportional valves and closed-loop control deliver real-time feedback and automatic error correction, ensuring consistent, flawless bending across diverse materials.

  • 20%-30% Energy Savings: Intelligent flow and pressure regulation cuts power consumption while maintaining rapid response times and peak hydraulic performance.

  • Smart Diagnostics & Compliance: Built-in intelligent diagnostics minimize maintenance downtime while meeting stringent CE and ISO international safety standards.

  • Flexible & Future-Ready: Adapts dynamically to complex bending tasks, driving efficient, smart, and cost-effective manufacturing operations.

Bending Offline Programming Software

Precise Effectiveness & Muti-Point Crowning of Press Brake Machine

The DELEM DA Series Offline Programming Software significantly enhances press brake productivity and processing capacity through intelligent technology. The integrated Profile-T3D system delivers a complete offline programming environment with 3D bending process simulation capabilities.

Key Technical Advantages of Profile-T3D

As an indispensable intelligent tool for modern sheet metal fabrication, Profile-T3D provides three core benefits: Rapid import and automatic unfolding of 3D engineering drawings; intelligent optimization of tool configuration and bending sequences; and advanced 3D dynamic simulation to preemptively detect collision risks, ensuring safe and reliable processing.

Bending Offline Programming Software
The Next-Gen Smart Manufacturing Automation Solution

The Next-Gen Smart Manufacturing Automation Solution

Driven by the CAMT® intelligent control hub and an advanced Industrial IoT (IIoT) platform, our solution bridges devices, systems, and the cloud to create a seamless digital manufacturing ecosystem.

  • Seamless Integration: Multi-protocol compatibility, plug-and-play interfaces, and cross-platform collaboration effortlessly connect CAD/CAM workflows and machinery.

  • Real-Time Intelligence: Lightning-fast remote response, complete data acquisition, and live monitoring eliminate blind spots on the shop floor.

  • Proven Reliability: Standardized connectivity, military-grade data security, and modular scalability have already helped hundreds of enterprises slash integration costs.

From remote cloud collaboration to automated production, we provide the robust technological backbone needed to make your smart factory smarter, faster, and more efficient.

Related Products

FAQs When Purchase Experts CNC Press Brake Genius 4-6 Axis

What is the actual bending accuracy of the Genius 4-6 Axis CNC Press Brake?
It achieves a repetitive positioning accuracy of up to $\pm0.01\text{ mm}$ for the axes and angle consistency within $\pm0.5^\circ$. Equipped with proportional hydraulic valves and closed-loop feedback systems, it automatically compensates for material springback to ensure flawless part quality.
It handles carbon steel, stainless steel, aluminum, and galvanized sheets. Depending on the specific tonnage model (e.g., 40T to 300T) and table length, it typically cuts and bends carbon steel up to 6mm–12mm thick for standard industrial applications.
Extremely user-friendly. It features 2D/3D graphical touch screen programming (“what you see is what you get”), allowing operators to simulate bending sequences visually. New operators can typically master basic programming within a few hours.

The 6-axis setup allows automated, simultaneous positioning of the depth (X), height ($R$), and lateral positions (Z1/Z2) of the backgauge, alongside left/right cylinder synchronization (Y1/Y2). This dramatically reduces setup times, prevents manual measuring errors, and accelerates multi-stage complex bending.

Standard configurations include high-performance safety light curtains or optional laser guarding systems (such as CAMT® DSP) that create a dynamic protective zone below the tool tip, instantly stopping the slide if any obstruction is detected during high-speed descent.
Yes. It supports offline software (such as Profile-T2D). Engineers can design parts and simulate bending sequences at an office PC, then transfer files via USB or IIoT network, maximizing machine uptime.
It integrates intelligent energy management systems and servo-hydraulic proportional control. This reduces power consumption by 20% to 30% compared to traditional non-servo systems by automatically regulating pump speeds and oil flow based on actual load demands.
It typically requires a standard industrial 3-phase power supply (e.g., 380V/50Hz or customized voltage). The workshop should maintain a relatively stable temperature, and a flat, reinforced concrete foundation is recommended depending on the machine tonnage.
We provide a comprehensive 12-month warranty for core components, remote technical support, video operation tutorials, and optional on-site installation and engineer training to ensure your team is fully self-sufficient.
Standard models are typically ready to ship within 30–45 days. For export, machines are securely wrapped in waterproof plastic films, reinforced with wooden blocks, and packed inside sturdy fumigation-free wooden crates to prevent maritime transport damage.
