CNC Control Systems for Press Brakes
CAMT partners with industry-leading brands — Delem, Cybelec, and ESA — to deliver only the most powerful, reliable, and operator-friendly CNC controls. From compact 2D systems to advanced 3D graphical solutions, every controller is selected and integrated to maximize precision, productivity, and ease of use on your press brake.
Intergral Advanced CNC Control System
More Than 10 Years R&D CNC Control
- Large 21.6" HD touchscreen: with an intuitive interface — operators see everything clearly and work faster with less fatigue
- One-page programming: — all key data is displayed on a single screen, making curve adjustments quick and straightforward
- Full 4-axis control: (supports 4+1+2 configurations) — handles even complex multi-axis bending with precision and reliability
- Stable Linux platform: — boots up in seconds and allows safe direct power-off without risk of system damage
- Smart bending assistance: — automatic calculation of bending data, programmable speed for each step, controlled slow-down and mid-stop, plus quick mold alignment on the home screen. New operators can get productive in a short time
- Rich industrial interfaces: — easily integrates into automated production lines as a flexible bending unit
DELEM CNC Control System For Press Brakes
DELEM DA53T Touch Color CNC System
A modern, compact, and highly versatile CNC control designed for a wide range of press brake applications — delivering full machine capability in a clean, user-friendly package.
- 10.1" high-resolution color touchscreen — clear visibility and comfortable operation even during long shifts
- Hot-key touch navigation — frequently used functions are just one touch away, reducing programming time
- Supports up to 4 axes (Y1, Y2 + 2 auxiliary axes) — flexible enough for most standard and multi-axis bending needs
- Built-in tool, material, and product library — store and recall settings quickly for consistent, repeatable results
- Advanced Y-axis control algorithms — precise performance with both closed-loop and open-loop valves
- CNC crowning control — automatic compensation for better angle accuracy across the full length of the part
- USB memory stick interface — easy program transfer and backup
- Profile-53TL offline software — prepare and simulate programs on a PC before production, minimizing machine downtime

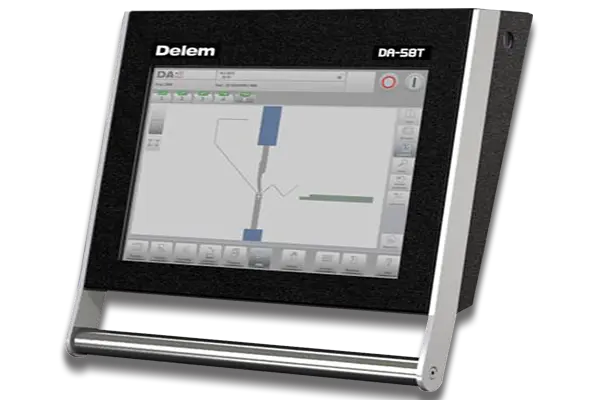

DELEM DA58T Color 2D graphical CNC System
A modern, compact CNC control that delivers strong performance for cost-effective press brake applications — combining powerful functionality with simple, intuitive operation.
- 15" high-resolution color touchscreen — large, clear display for comfortable and accurate operation
- 2D graphical touchscreen programming — draw and program parts visually, making complex bends easier and faster to set up
- Supports up to 4 axes (Y1, Y2 + 2 auxiliary axes) — flexible control for most standard multi-axis bending needs
- Automatic bend sequence calculation — the system suggests the optimal bending order, reducing programming time and errors
- Advanced Y-axis control algorithms — precise and stable performance with both closed-loop and open-loop valves
- CNC crowning control — automatic deflection compensation for consistent angle accuracy across the full length
- USB and peripheral interfacing — easy data transfer, backup, and connection to external devices
- Profile-58TL offline software — prepare and simulate programs on a PC in advance to minimize machine downtime

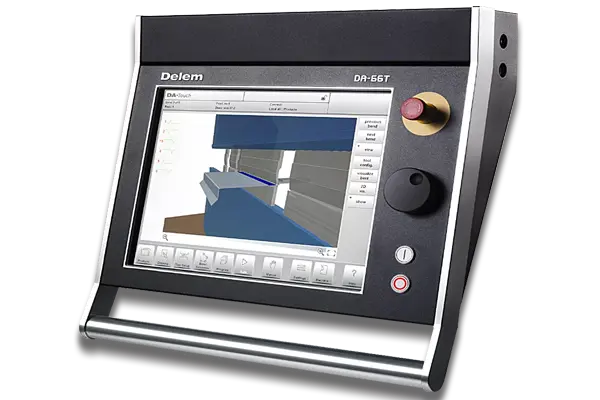

DELEM DA66T Touch 2D Graphical Control
Powered by an embedded real-time Windows operating system, the DA-66T delivers maximum reliability and smooth start-ups — even after an unexpected power-off. A robust, high-performance control designed for demanding production environments.
- 17" high-resolution color touchscreen — large, sharp display for clear visibility and comfortable long-term operation
- 2D graphical touchscreen programming — intuitive visual programming that simplifies complex part setup
- 3D visualisation in both simulation and actual production — operators can clearly preview the bending process before and during machining
- Full Windows application suite — familiar Windows environment for easier file management and software integration
- Delem Modusys compatibility — modular and scalable system that can grow with your production needs
- USB and peripheral interfacing — convenient data transfer, backup, and connection to external devices
- Profile-T2D offline software — prepare and simulate programs offline to reduce machine downtime
- Sensor bending & correction interface — supports real-time angle measurement and automatic correction for higher accuracy

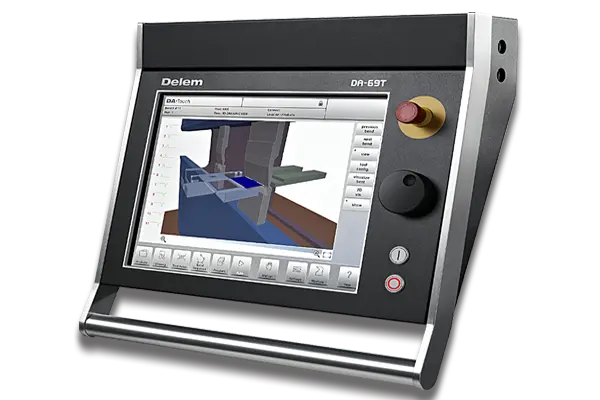

DELEM DA69T Touch 3D Graphical Control
- Smart 3D Vision & Collision-Free Programming: Seamlessly switch between 2D and 3D touch programming. The system automatically calculates the optimal bend sequence and performs real-time collision detection—saving setup time and eliminating costly material waste.
- True-to-Life 3D Machine Set-Up: Visualize multi-tool station configurations in complete 3D before production begins. Get instant, accurate feedback on product feasibility and operator handling.
- 17" High-Resolution Intuitive Touchscreen: Enjoy a responsive, full-color interface that brings 3D visualization to life during both simulation and live production—making complex operations effortlessly simple.
- Seamless Connectivity & Smart Integration: Powered by a full Windows suite and Profile-T2D offline software for effortless office-to-shop workflow. Built with Delem Modusys compatibility, USB interfacing, and real-time sensor bending/correction support for long-term scalability and maximum accuracy.
Cybelec CNC Control System

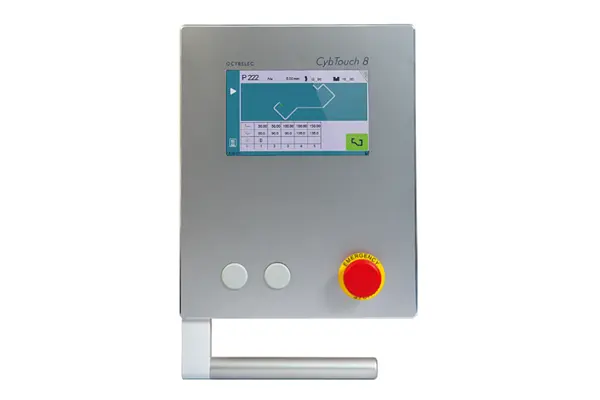

CYBELEC CybTouch 8 PS 2D graphic CNC System
Engineered specifically for synchronized press brakes, the CybTouch 8 PS delivers rock-solid precision and perfect angle repeatability. Combining a vivid color touchscreen with deep functional integration, it turns complex bending setups into a simple, smartphone-like touch experience.
- 7" High-Contrast Color Graphic Touchscreen
- 2D Graphic Profile Creation with Manual Sequencing
- 2D Graphic Profile Creation with Manual Sequencing
- Automatic Bend Allowance Calculation
- Smart Pressure & Crowning Calculation
- Automated CNC Crowning Control
- Instant Angle & Back Gauge Correction
- Bundled with PC1200 Offline Software

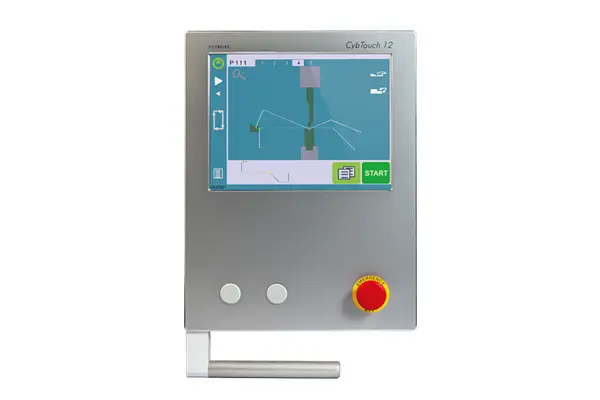

CYBELEC CybTouch 12 PS 2D graphic CNC System
As part of the acclaimed CybTouch series, the CybTouch 12 PS combines a spacious 12” touch interface with deep functional integration. Designed specifically for synchronized press brakes, it gives operators complete, intuitive control over complex 2D bending processes while driving shop-floor productivity.
- 12” High-Resolution Full Color Touchscreen
- Touch 2D Graphic Part Creation with Manual Sequencing
- Up to 4 Axes Control (Y1, Y2, X, R-Axes)
- Automatic Bend Allowance Calculation
- Smart Pressure & Crowning Calculation
- Modulable Tooling Management per Part or Bend
- Instant Angle & Back Gauge Correction
- Bundled with PC-ModEva Offline Software

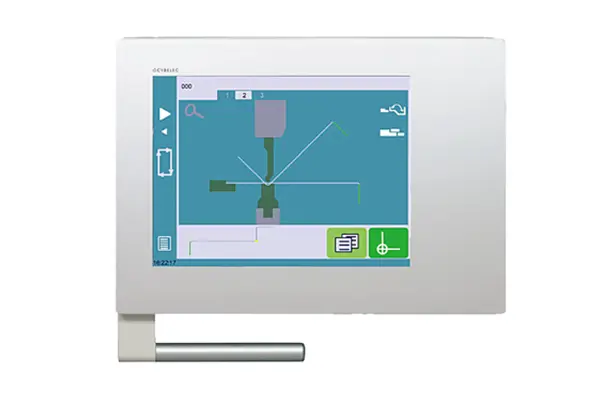

CYBELEC CybTouch 15 PS 2D graphic CNC System
Designed with a modern horizontal layout and an impressive 15” display, the CybTouch 15 PS bridges the gap between everyday simplicity and advanced manufacturing capabilities. It brings high-end features—like 6-axis control and tandem operation—into a sleek, compact controller built to scale your production.
- 15” High-Resolution Full-Touchscreen (Horizontal Ergonomic Design)
- Intelligent Touch 2D Profile Drawing & Precise Program Creation
- Up to 6-Axis Multi-Gauge Control (Y1, Y2, X, R, Z1, Z2)
- Automatic Bend Sequence Calculation
- Tandem Machine Synchronization Management
- Modulable Tooling Assignment per Part or Individual Bend
- On-the-Fly Angle & Back Gauge Correction Interface
- Bundled with VisiTouch 2D or VisiTouch MX Offline Software

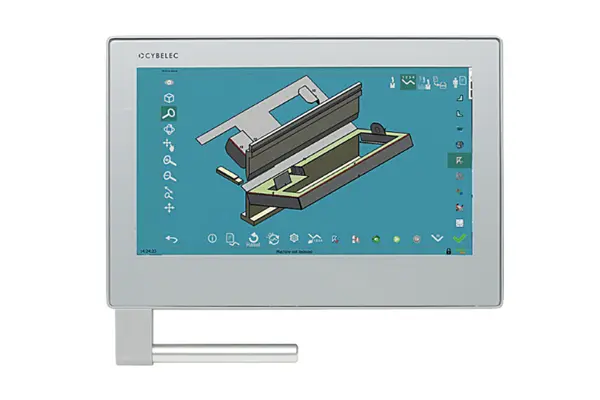

CYBELEC VisiTouch 19 2D and 3D graphical CNC System
Engineered for modern sheet metal operations tackling high-complexity jobs, the VisiTouch 19 redefines how operators interact with press brakes. Housed behind a sleek, all-glass surface, it transforms intimidating setup procedures and complex 2D/3D programming into a smooth, intuitive, and mistake-proof process.
- 19” Streamlined All-Glass Full-Touchscreen
- Touch 2D Graphical Profile Drawing & Precise Program Creation
- User-Friendly Next-Gen Human-Machine Interface (HMI)
- Automatic Bend Sequence Calculation & Optimization
- Built-in Internal Data Backup & Disaster Recovery Functions
- Modulable Tooling Assignment per Part or Individual Bend
- Instant Angle & Back Gauge Correction System
- Bundled with VisiTouch 2D or VisiTouch MX Offline Software
ESA CNC Control System

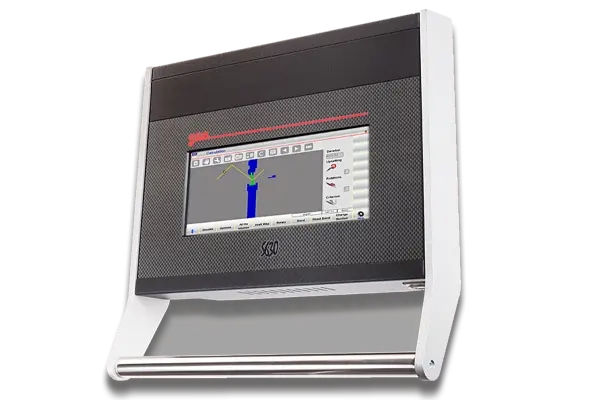

ESA S630 2D Graphical CNC System
The ESA S630 proves that you don’t need to sacrifice advanced capabilities for affordability. Packed into a sleek 10” display with built-in proportional valve amplification, it delivers top-tier CNC intelligence, rugged industrial reliability, and seamless shop-floor connectivity at an unbeatable ROI.
- 10” Industrial LCD Touchscreen (Resistive Touch)
- Touch-Based 2D Part Creation with Manual Sequence Customization
- Standard 4-Axis Precision Motion Control (Y1, Y2, X, R)
- Automated Bending Force & Crowning Calculations
- Modulable Tooling Assignment per Part or Bend
- Direct Angle & Crowning Quick-Correction Interface
- Integrated Proportional & Pressure Valve Amplifiers
- Bundled Free Offline PC Simulation Software
- Optional Tandem Machine Synchronization Support
- Optional Modbus TCP Interface for SCADA / MES Connectivity

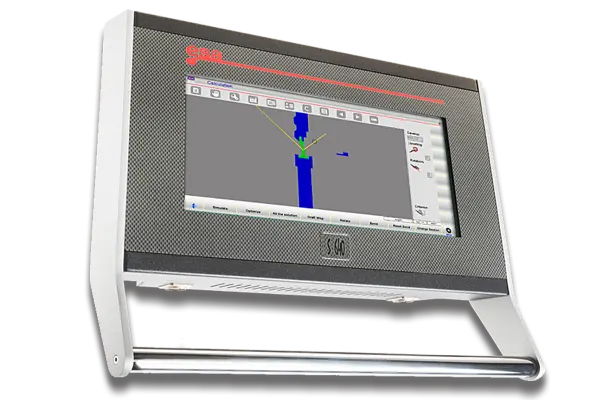

ESA S640 2D Graphical CNC System
The ESA S640 elevates mid-to-high-tier press brake operations with predictive material database capabilities and multi-machine sync options. Designed to tackle high-cost alloy bending and complex multi-axis geometries, it eliminates test-bend material waste while offering seamless scalability up to a 4-machine tandem array.
- 15” Ergonomic Industrial LCD Touchscreen (Resistive Touch)
- Touch 2D Graphical Part Drawing with Automatic Sequence Optimization
- Scalable Motion Control from 4-Axis Standard Up to 6 Axes Max
- Automatic Bending Force & Crowning Compensation
- Modulable Tooling Management per Part or Individual Bend
- Direct Angle & Crowning Quick-Correction System
- Integrated Proportional & Pressure Valve Amplifiers
- Bundled Free Offline PC Simulation Software
- Optional Multi-Machine Tandem Synchronization (Up to 4 Press Brakes)
- Optional Modbus TCP Protocol for SCADA & MES Smart Factory Integration

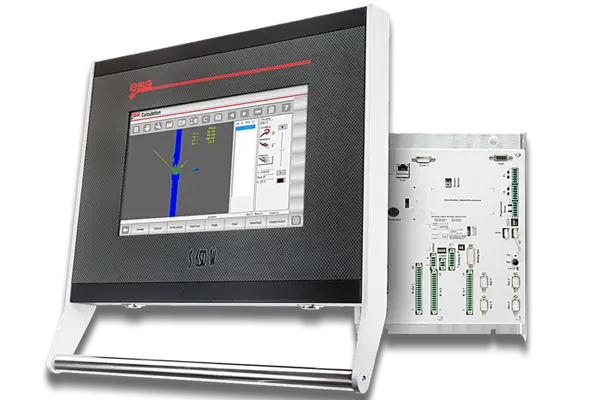

ESA S650W 2D Graphical CNC System
The ESA S650W breaks all boundaries in processing speed, axis scalability, and software integration. Powered by a high-performance built-in PC, it brings full-fledged 3D CAD/CAM environments (Metalix, Radan, AutoPol) directly to the shop floor—allowing operators to import DXF toolings, model complex parts, and interface with real-time laser angle measurement systems on one seamless platform.
- 15” Heavy-Duty Industrial LCD Touchscreen (Resistive Touch)
- Direct DXF Tool Profile & Die Holder Import Management (Optional)
- Fingertip Touch 2D Graphic Part Creation with Auto-Sequencing
- Scalable Motion Control from 4 Axes Standard Up to 32 Axes Max
- Automated Bending Force & Crowning Compensation
- Modulable Tooling Assignment per Part or Individual Bend
- Bundled Free Offline PC Simulation Software
- Multi-Machine Tandem Synchronization (Up to 4 Press Brakes)
- Modbus TCP Protocol for SCADA & MES Smart Factory Integration
- Integrated DataM & Iris-Plus Laser Angle Measurement Support (Optional)
- Optional EsaBend-3D Software Suite
- Integrated 3D Viewers for Metalix, Radan, and AutoPol (Optional)

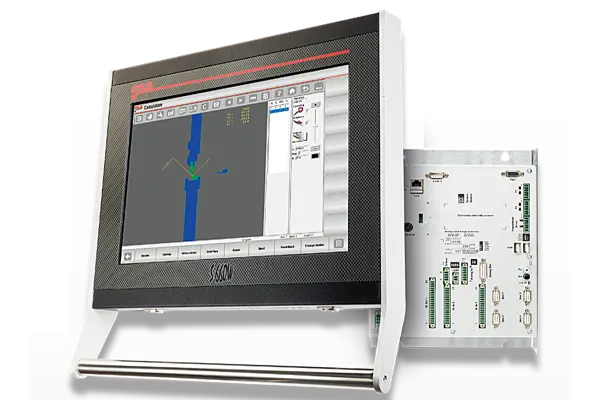

ESA S660W CNC System
The ESA S660W marks a major technological leap with its completely redesigned multi-touch user experience housed on a massive 19” capacitive glass screen. Built for modern high-tech sheet metal plants, it pairs intuitive smartphone-like gestures with an astounding 156-axis control capacity, making it the definitive platform for fully automated press brake cells, robotic loading, and high-end 3D CAD/CAM ecosystems.
- 19” High-Precision Capacitive LCD Multi-Touchscreen
- Redesigned User Interface Tailored for Fluid Multi-Touch Interaction
- Direct DXF Tool Profiles & Die Holder Import Management (Optional)
- Fingertip 2D/3D Part Creation with Intelligent Auto-Sequencing
- Extreme Axis Expansion from 4 Axes Standard Up to 156 Axes Max
- Automatic Bending Force & Crowning Compensation
- Modulable Tooling Assignment per Part or Individual Bend
- Direct Real-Time Angle & Crowning Quick-Correction Interface
- Bundled Free Offline PC Simulation Software Suite
- Multi-Machine Tandem Synchronization (Up to 4 Press Brakes)
- Modbus TCP Protocol for SCADA & MES Smart Factory Integration
- DataM & Iris-Plus Laser Angle Measurement Compatibility (Optional)
- EsaBend-3D Software Suite Integration (Optional)
- Integrated 3D CAD Viewers for Metalix, Radan, and AutoPol (Optional)

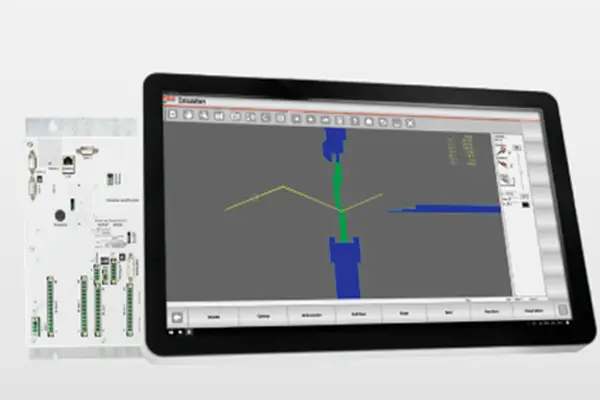

ESA S675W CNC System
Positioned at the absolute peak of the ESA series, the S675W combines a massive 21” capacitive multi-touch widescreen with full-fledged 3D CAD/CAM fusion and advanced bend database intelligence. Designed for high-tech production environments, it turns complex engineering tasks, multi-axis robotics, and large-scale CAD visualizations into a fluid, zero-friction workstation experience.
- 21” Ultra-Wide Industrial Capacitive Multi-Touch Display
- Redesigned Fluid Multi-Touch User Experience (Next-Gen Gesture Navigation)
- Direct DXF Tool Profile & Tool Holder Import System (Optional)
- Fingertip 2D/3D Graphic Part Creation with Auto-Sequencing
- Extreme Axis Control from 4-Axis Standard Up to 156 Axes Max
- Automated Bending Force & Crowning Compensation
- Modulable Tooling Assignment per Part or Individual Bend
- Direct Real-Time Angle & Crowning Quick-Correction Interface
- Bundled Free Offline PC Simulation Software Suite
- Integrated Enterprise Bend Database Management (Optional)
- Modbus TCP Interface for SCADA & MES Smart Factory Integration
- DataM & Iris-Plus Laser Angle Measurement Compatibility (Optional)
- EsaBend-3D Software Suite Integration (Optional)
- Integrated 3D CAD Viewers for Metalix, Radan, and AutoPol (Optional)
FAQs When Purchase CNC Control System For Press Brake
How does the CNC system ensure angle accuracy and consistency across long workpieces?
Our CNC controller integrates dynamic CNC crowning compensation and intelligent bending force calculation algorithms. By analyzing sheet thickness, material tensile strength, and die parameters in real time, the system automatically adjusts the hydraulic crowning cylinders (or mechanical deflection systems) during bending. This effectively eliminates the “canoe effect” (middle bulge or loose angles) on workpieces up to 6+ meters, ensuring precise angle repeatability from edge to edge without relying on operator trial-and-error.
Is the system compatible with 3D CAD/CAM software like AutoPol, Metalix, or Radan, and can we import DXF files directly?
Yes, absolutely. The system features an open software architecture with native DXF, DWG, and 3D STEP/IGES import capabilities. Engineers can import 2D/3D CAD drawings directly at the machine terminal or prepare programs offline using industry-standard CAM software like AutoPol, Metalix, and Radan. The controller automatically parses bend lines, calculates flat pattern dimensions, and generates the bend sequence, eliminating manual drawing and data input errors on the shop floor.
How steep is the learning curve for operators who are transitioning from manual press brakes or older 2D controllers?
The system is built around a modern, smartphone-style graphic user interface (GUI) with 2D/3D visual simulation. Operators can simply sketch profiles on the touchscreen using fingertip drawing or select pre-programmed parts. The system automatically calculates optimal bend sequences and performs real-time 3D collision detection before actual cutting. Most new operators can master basic profile creation, tool setup, and daily production in less than two hours.
What options do you offer for automatic angle measurement and springback correction?
To guarantee zero-scrap production on expensive alloys or variable metal batches, our controllers seamlessly interface with real-time laser angle measurement systems, including DataM and Iris-Plus. The laser sensor measures the actual bend angle mid-stroke, calculates real-time material springback, and feeds correction data back to the CNC in milliseconds to make instant depth adjustments—delivering first-part-correct precision on every batch.
How many axes can the system support, and can it handle robotic cell or tandem machine configurations?
Our CNC range scales from cost-effective 4-axis setups (Y1, Y2, X, R) up to extreme multi-axis automation architectures supporting up to 156 axes. The system natively supports Z1/Z2 backgauge fingers, delta-X axes, sheet followers, and robotic loading/unloading interfaces. Additionally, it offers dedicated Tandem and Multi-Machine Management (synchronizing up to 4 press brakes), making it an ideal choice for extra-long architectural panels or automated robotic bending cells.
Does the system include offline PC software, and how does it help boost machine uptime?
Yes, every system includes a full-featured offline PC software suite (such as Profile-T2D, PC-ModEva, VisiTouch, or EsaBend-3D). Process engineers can import CAD files, configure tool stations, calculate bend sequences, and verify 3D collision simulations on their office computer. Finished G-code or program files are sent via local network or USB directly to the press brake, keeping the machine running and earning revenue instead of sitting idle during programming.
How does the CNC system connect to Smart Factory networks (MES/SCADA) for Industry 4.0 integration?
The controller comes standard with Modbus TCP/IP, Ethernet connectivity, and OPC UA protocols for seamless Industry 4.0 integration. It enables real-time bidirectional data flow between the shop floor and your MES or SCADA system—allowing factory managers to track active machine status, runtime hours, piece counts, error logs, and energy usage in real time for transparent, data-driven production management.
What hardware protection and environmental durability features are engineered into the screen and cabinet?
Built for demanding metal fabrication shop environments, our controllers feature IP65-rated front panels that protect against airborne metal dust, oil mist, and moisture. The displays utilize ruggedized toughened glass (capacitive multi-touch or heavy-duty resistive touch) with anti-glare coatings, operating reliably in temperature ranges from 0°C to 50°C (32°F to 122°F) while providing high optical clarity under harsh shop lighting.
Can the controller integrate with proportional hydraulic valves and servo drives from major international brands?
Yes. Our systems feature built-in proportional and pressure valve amplifier interfaces, providing direct closed-loop control over leading hydraulic valves (e.g., Hoerbigiger, Rexroth, Voith) and servo drive platforms (e.g., Yaskawa, Panasonic, Innovance, Delta). This high degree of hardware compatibility eliminates the need for external amplifier cards, simplifying electrical cabinet layout, reducing failure points, and lowering overall maintenance costs.
What kind of global technical support, language options, and remote diagnostic capabilities are provided?
The software interface supports multilingual toggling across 20+ languages (including English, Spanish, German, French, Chinese, Turkish, Russian, etc.). For post-purchase peace of mind, our CNC controllers feature built-in remote diagnostics and backup/restore capabilities via Cloud/VPN. If an issue arises, our service engineers can remotely inspect I/O states, analyze system parameters, and update software over the air, minimizing downtime no matter where your factory is located.
Have more questions, or need a customized CNC Control System solution?
Contact our team for detailed advice, technical support, or a tailored quotation. We’re ready to help you find the right configuration for your production needs.
