Revolutionize Your Press Brake Efficiency with Advanced Tooling Clamping Systems
Engineered for rapid punch changes, maximum safety, and pinpoint clamping precision. Upgrade your press brake operations with manual, hydraulic, or pneumatic solutions tailored for modern metal fabrication.

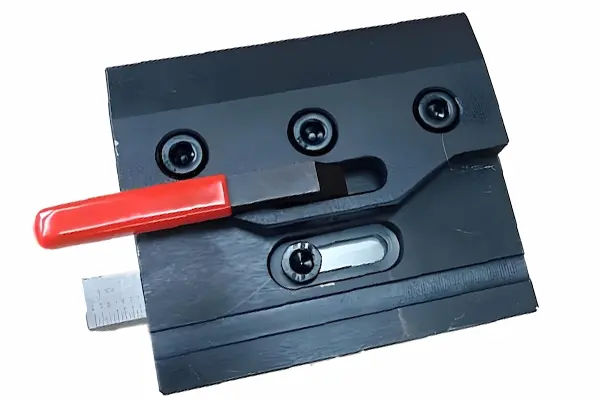

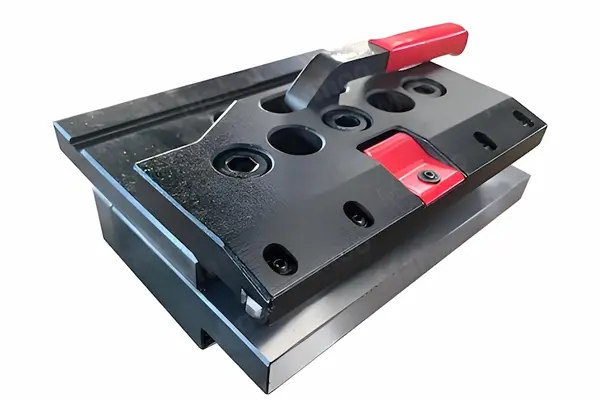

Quick Clamping, High-Efficiency Bending: The Best Choice for Productivity
Eliminate setup bottlenecks and protect your operators with CAMT’s high-precision quick-clamp system. Engineered specifically for demanding metal fabrication environments, every component is optimized for rapid tool changes, operator safety, and long-term clamping accuracy:
- Zero-Drop Safety System: Features an integrated safety groove and hook-locking pressure plate that mechanically hold punches in place. Even if fully unclamped, tools will not fall—preventing costly tool damage and workspace injuries.
- Heavy-Duty Durability (40Cr Alloy): All load-bearing components are forged from heat-treated 40Cr alloy steel, providing exceptional surface hardness and wear resistance under continuous high-tonnage pressure.
- Self-Locking Anti-Deflection Wedges: Built with precision self-locking wedge angles that resist vibration and hold precise positioning without drifting during extended high-speed production runs.
- Micro-Adjustable Spherical Pressure Screws: Fine-threaded screws with spherical contact points evenly distribute clamping forces, allowing operators to achieve micron-level leveling alignment effortlessly.
- Versatile Thickness Compensation & Segmented Tooling Support: The quick-cam rotary handle dynamically compensates for slight tooling tolerance variations. Optional polyurethane inserts adapt to multi-piece segmented tooling, guaranteeing uniform pressure across complex setup configurations.
Premium Tooling Metallurgy & Precision Engineering for Long-Life Performance
Our press brake tooling and hard-alloy components are engineered to withstand continuous, high-tonnage forming cycles without compromising dimensional accuracy.
- Advanced Powder Metallurgy & Sintering: Manufactured from ultra-fine hard alloy powder using low-pressure, high-temperature vacuum sintering. This process ensures an extremely dense molecular structure, delivering high hardness and exceptional wear resistance.
- Heat-Treated & Multi-Edge Precision Ground: Undergoes specialized vacuum heat treatment followed by multi-axis CNC precision grinding. The working edges deliver exceptional durability, high fracture toughness, and clean, repeatable bending performance.
- Micron-Level Straightness & Parallelism: Every segment undergoes rigorous CMM (Coordinate Measuring Machine) inspection. Straightness and flatness tolerances are tightly controlled and customizable down to micron levels to eliminate angular deviation across long sheet metal bends.
- Ultra-Smooth Surface Finish: Precision CNC profile grinding reduces surface friction, preventing tool galling, minimizing sheet metal marking, and significantly extending tool service life.

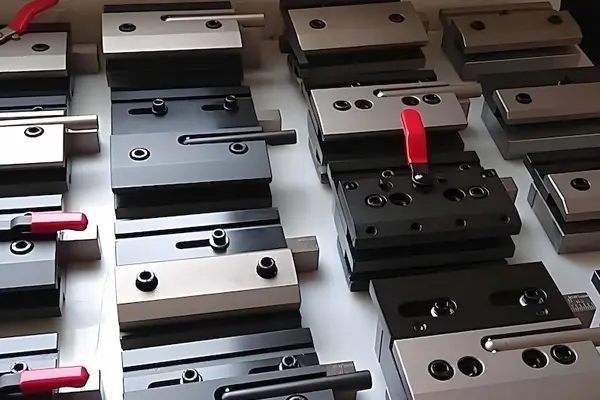

Engineered for Any Press Brake, Tailored for Every Operation
Whether you operate a high-mix, low-volume job shop or an automated high-capacity production line, the CAMT Quick-Clamp System provides complete flexibility to seamlessly integrate with your existing machinery and tooling setup:
- Universal Compatibility & Clamping Styles: Choose from Universal Quick-Clamps, Amada-Style Clamps, or Double-Sided Dual-Open Clamps. Fully compatible with major press brake brands and standard tooling setups (European, Amada, WILA, and custom profiles).
- Flexible Actuation Methods: Select the right power mechanism for your workflow—cost-effective Manual clamps for versatile batch setups, or high-speed Hydraulic / Pneumatic systems for automated, push-button tool changes.
- Precision Micro-Adjustments: Built-in wedge angle fine-tuning compensates for bed deflections, while optional elastic polyurethane pads deliver uniform clamping force across segmented, multi-piece tooling without leaving tool marks.
- Custom B2B Solutions: From specialized sheet metal thickness variations to unique punch holder geometries, every clamp style can be custom-engineered to strike the perfect balance between high throughput and tight-tolerance bending accuracy.

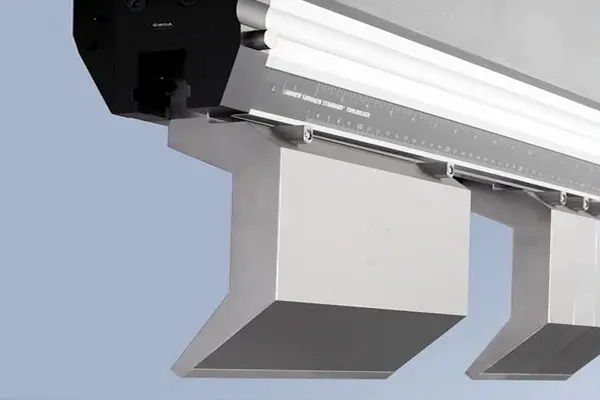

Advanced WILA-Compatible Hydraulic Clamping: Premium Precision for European Standard Retrofits
Engineered specifically for press brakes equipped with European Standard tooling adapters, this hydraulic clamping kit seamlessly upgrades your existing machine into a high-efficiency production center. By eliminating manual locking routines, it maximizes shop floor throughput while expanding bending freedom.
- Compact, Obstruction-Free Design: Features an ultra-compact internal hydraulic mechanism with zero external moving parts. This flat-profile construction maximizes your throat depth and bending clearance, allowing unobstructed box forming and complex flange bending.
- Precision Tx & Ty Axis Alignment: Integrated Tx (front-to-back center alignment) and Ty (parallelism/leveling) micro-adjustments allow operators to correct bed deflection and tool offset in seconds—ensuring perfect bend angle repeatability across full-length profiles.
- High-Tonnage Hydraulic Holding Force: Delivers continuous, high-pressure hydraulic clamping along the entire beam. Punches are seating and seating automatically with zero gap, completely preventing tool movement during high-tonnage coin bending or bottoming.
- Push-Button Automated Operation: Fully integrates with hydraulic power packs and CNC controllers for instantaneous, single-touch clamping and unclamping—reducing tool setup times by up to 80%.
- Low-Maintenance Industrial Reliability: Built with hardened internal components and direct-seal hydraulics, minimizing wear points and ensuring years of leak-free, high-reliability operation with simple routine checks.
FAQs When Purchase Tooling Clamping System For Press Brake
Is the CAMT quick-clamping system compatible with my existing press brake and tooling (European / Amada / WILA standard)?
Yes, 100%. Our clamping systems are designed for high cross-brand versatility. We offer tailored upper and lower clamping configurations for European Standard (Promecam), Amada style, WILA style, and Trumpf style punch/die geometries. For existing machines requiring a retrofit, we provide custom intermediate adapters that bolt directly onto your machine beam without needing expensive structural modifications.
How much setup time can we actually save by upgrading from traditional manual screws to CAMT quick clamping?
On average, conventional manual bolt clamping takes 15 to 20 minutes for a full-length tool change, requiring manual wrenching and alignment. With CAMT quick-cam manual clamps or push-button hydraulic systems, a complete tool swap takes under 2 minutes—reducing setup downtime by up to 80-90%. For job shops performing 5 to 10 tool changes per shift, this reclaims 1.5 to 2.5 hours of active bending capacity every single day.
How does the system prevent heavy punches from falling and causing injury or tool damage during setup?
Safety is engineered directly into the mechanical lock. Our clamps feature a dual-protection design: an integrated safety groove on the clamp body paired with a specialized hook-type pressure plate. When you release the clamping mechanism, the hook mechanically catches the safety button/tang of the punch. Even if fully unclamped, the upper punch will never fall vertically until the operator manually depresses the safety latch to sliding it out laterally.
Will the clamps maintain rigid alignment under high-tonnage coin bending or heavy plate forming without slippage?
Absolute stability is guaranteed. Load-bearing components are forged from heat-treated 40Cr alloy steel (HRC 48-52) to prevent deformation under continuous load. Our manual systems utilize a self-locking angle wedge that prevents vibration-induced loosening. Our WILA-style hydraulic clamps generate up to 80–100 kN per meter of continuous clamping pressure, automatically seating the punch flush against the beam with zero clearance for heavy bottoming operations.
What are the Tx and Ty adjustment features, and how do they help correct machine deflection or alignment issues?
Tx and Ty micro-adjustments are essential precision controls on our advanced WILA-style hydraulic kits:
- Tx Axis (Front-to-Back Adjustment): Allows precision offset alignment ($\pm 1.5\text{ mm}$) to align the upper punch centerline perfectly with the bottom die center, eliminating angular twist.
- Ty Axis (Vertical Parallelism / Leveling): Allows fine vertical adjustment to compensate for local beam deflection or uneven wear on older machine beds.Together, they allow operators to achieve micron-level bending accuracy across full-length sheet profiles without using manual shims.
Can your clamping system handle multi-piece segmented tooling with slight thickness tolerances?
Yes. Traditional rigid pressure plates often fail to clamp segmented tools evenly if individual segments have a 0.02-0.05mm manufacturing tolerance, causing short segments to slip. CAMT pressure plates can be equipped with high-density elastic polyurethane inserts or individual spring-loaded clamping pins. This allows each individual mold segment to receive equal, dynamic clamping force, even when combining old and new tooling segments.
What happens if there is a sudden power outage or hydraulic line pressure drop during operation?
Our WILA-style hydraulic clamping systems are equipped with an integrated pilot-operated check valve (pressure-retention valve) directly inside the clamp manifold. In the event of a sudden loss of electrical power or hydraulic fluid line failure, the valve instantly locks the hydraulic pressure inside the clamping cylinder. The system holds 100% clamping force for over 24 hours, preventing tools from dropping or slipping.
How difficult is it to retrofit this onto an existing press brake, and how long will our machine be down?
The retrofit process is straightforward and designed for minimal downtime. For manual quick-clamps, installation simply involves removing old clamp plates and bolting on CAMT units—taking 2 to 4 hours. For WILA-style hydraulic retrofits, we provide pre-machined intermediate adapter bars and a plug-and-play hydraulic power pack with quick-connect hoses. A complete mechanical and hydraulic installation typically takes less than 1 working day.
What materials are used, and what is the expected service life under heavy two-shift industrial use?
Main clamp bodies and load-bearing wedges are precision-machined from high-tensile 40Cr alloy steel, subjected to multi-stage quenching and tempering, and surface-treated with black oxide or nitriding. Working clamping faces are precision CNC ground to $R_a 0.8\ \mu\text{m}$ to prevent surface galling. Under standard two-shift industrial operating conditions ($16\text{ hours/day}$), CAMT clamping systems deliver a design service life of 8 to 10+ years with zero loss of clamping force.
What maintenance is required, and can CAMT custom-engineer clamps for non-standard press brake beams?
Maintenance is extremely low. Manual clamps only require periodic cleaning of metal dust and light grease application on adjusting screws every 3 months. Hydraulic systems require routine O-ring inspection and hydraulic fluid checks annually. As an OEM/ODM manufacturer, CAMT specializes in custom engineering: if you have a non-standard upper beam thickness, specialized mounting hole pitch, or unique closed-height requirements, our engineering team can generate 3D CAD drawings within 24 hours for custom manufacturing.
