CAMT Hydraulic Ironworker | Multi-Function Punching, Shearing & Notching Machine For Sale

A versatile multi-station machine that combines punching, shearing, notching, and profile cutting in one compact unit. Designed for efficient steel fabrication with the ability to perform two operations simultaneously.

Punching, flat shearing, angle/channel cutting, bar shearing, and notching — all on one machine.
Two workstations can run at the same time, significantly boosting productivity.
Reliable force delivery for thick plates and structural profiles with smooth, controlled strokes.
Quick-change tooling, adjustable stroke, and foot-pedal control for fast setup and daily use.

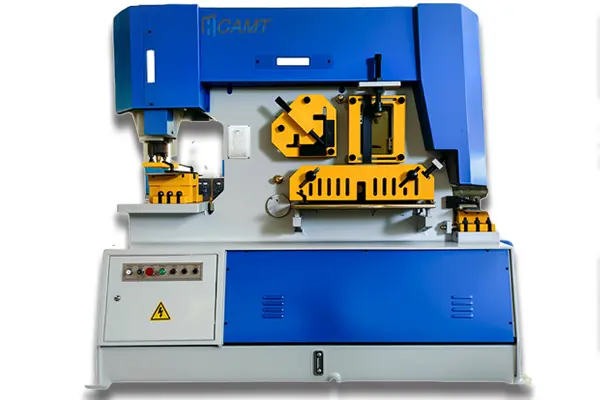

The CAMT Hydraulic Ironworker is a highly versatile multi-station fabrication machine that integrates punching, flat bar shearing, angle and channel cutting, round and square bar shearing, and notching into one compact and robust unit. Powered by a reliable hydraulic system, it delivers strong, consistent force across all stations, enabling efficient processing of steel plates, angles, channels, I-beams, and solid bars with minimal effort.

Unlike traditional single-function machines, the CAMT Ironworker allows operators to complete multiple operations without moving material between different equipment. Its dual-piston design supports simultaneous work at two stations, significantly increasing throughput in busy fabrication shops. The adjustable stroke, quick-change tooling, and foot-pedal controls make daily operation straightforward and reduce setup time between jobs.

Built for durability and low maintenance, this machine is widely used in steel structure workshops, structural steel fabrication, bridge and tower manufacturing, and general metalworking environments. By consolidating several processes into a single footprint, it helps workshops save valuable floor space, reduce material handling, and improve overall productivity on everyday punching and shearing tasks.

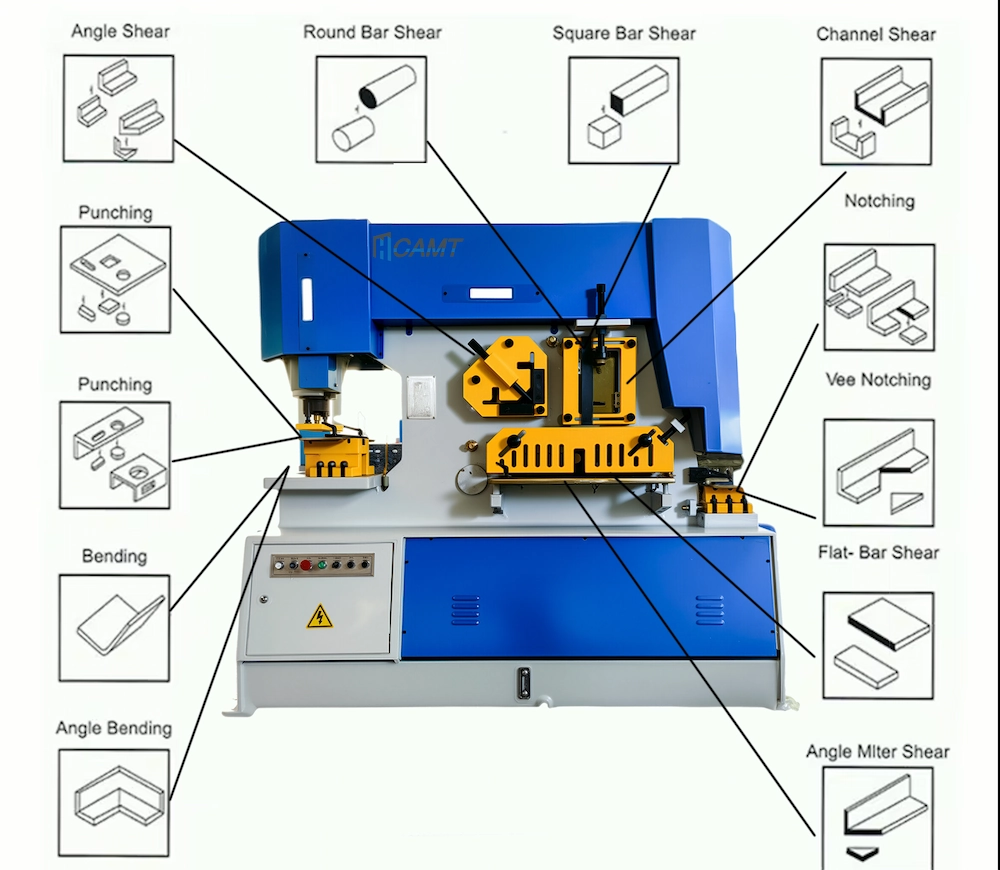

Angle Shear: Cuts angle steel cleanly at 90° or other required angles, suitable for structural framing work.
Round Bar Shear: Shears round steel bars of various diameters with clean, precise cuts.
Square Bar Shear: Cuts square steel bars efficiently with minimal deformation.
Channel Shear: Shears channel steel (U-shaped sections) cleanly for structural and fabrication applications.
Notching: Removes rectangular or square sections from the edge of plates or bars, commonly used for joint preparation.
Vee Notching: Creates V-shaped notches, ideal for corner joints and welding preparation on plates and angles.
Flat-Bar Shear : Cuts flat steel bars and plates to the required length with straight, high-quality edges.
Angle Miter Shear: Performs 45° miter cuts on angle steel, allowing perfect corner joints for frames and structures.
Angle Bending: Bends angle steel into required shapes or corners for structural components.
Bending: Performs simple bending of flat plates or bars using optional bending tools.
Punching: Creates round or shaped holes in steel plates and flat bars quickly and accurately. Tooling is easy to change for different hole sizes.

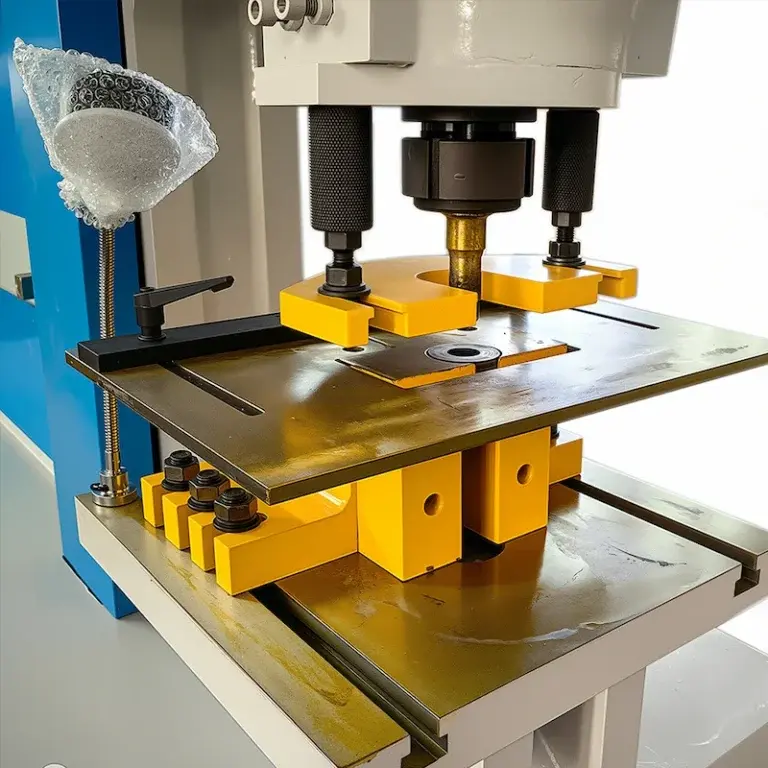

Punching Station of Ironworker

The punching station is designed for fast, accurate hole-making on steel plates, flat bars, angle iron, and channel sections. A full range of universal punches and dies is available, allowing you to handle both standard and large-section punching with ease.

Key practical advantages include:

Large viewing window and swing-away stripper – Gives the operator a clear view of the workpiece and makes tool changes safer and faster.
Large two-piece gauging table with rulers and adjustable stops – Enables precise positioning and repeatable hole locations without extra measuring tools.
Quick-change coupling system – Punch and die can be replaced in minutes, minimizing downtime between different jobs.

This station helps fabrication shops complete punching tasks more efficiently while maintaining consistent accuracy on everyday structural work.

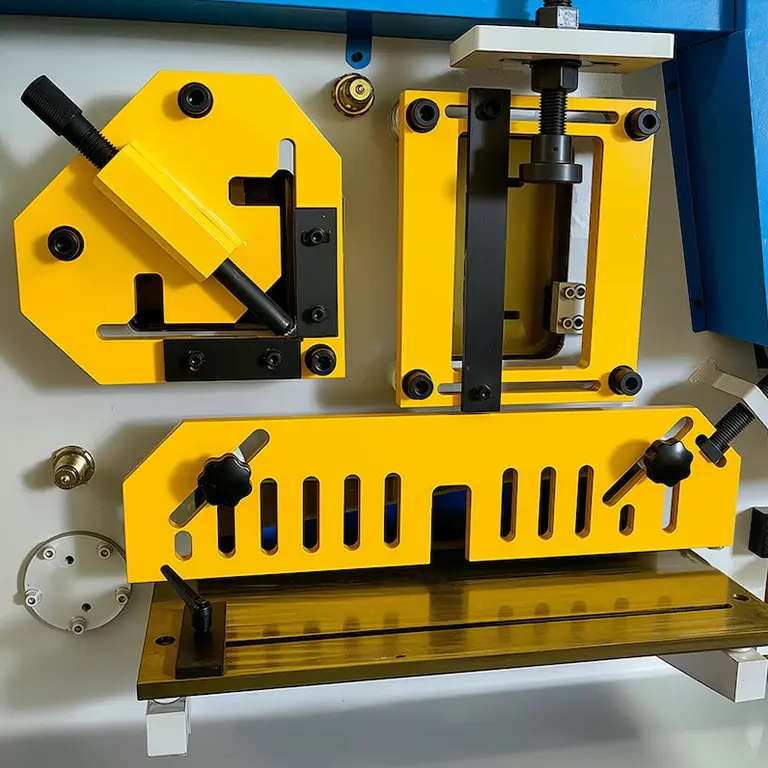

Flat Bars Shearing Station of Ironworker

This station is built for clean, efficient cutting of flat bars, round bars, square bars, channels, and angle steel — all with strong safety protection and minimal material waste.

Key practical advantages:

Multi-size bar shearing
Multiple cutting holes accommodate a wide range of round and square bar diameters. An adjustable hold-down device keeps the material firmly in place during cutting of bars, channels, and beams, delivering consistent results.
High-safety design
Large, robust guarding provides maximum operator protection while still allowing clear visibility and easy material handling.
Precision angle shearing
The angle shear can cut both the top and bottom legs at 45°, enabling perfect picture-frame corners for clean, high-quality welds.
Diamond-shaped blade
Produces high-quality cuts with minimal material loss and reduced deformation, helping you save material and reduce secondary finishing work.

Together, these features allow fabrication shops to handle a wide variety of profile cutting tasks quickly, safely, and with better cut quality on a single machine.

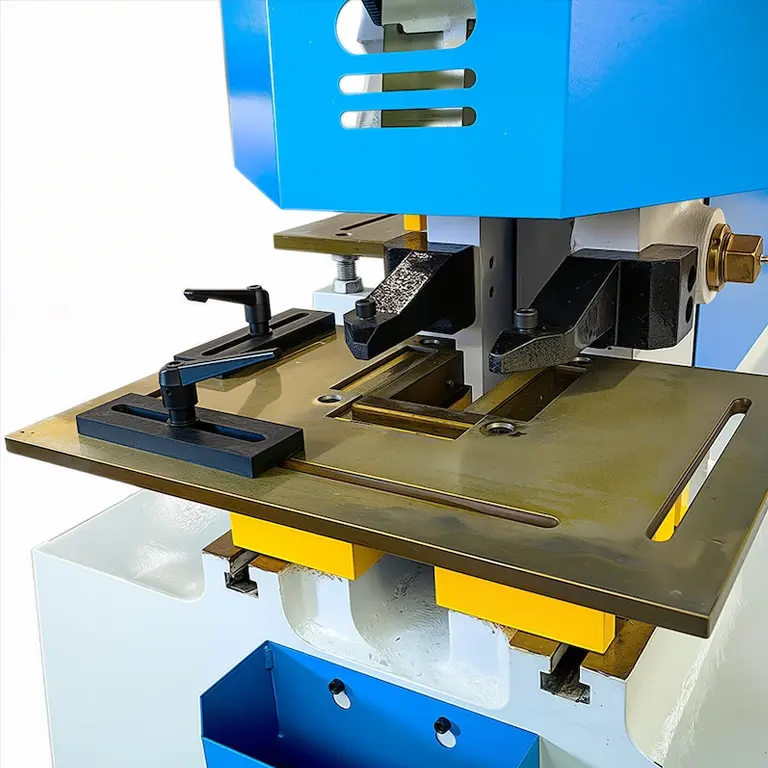

Notching Station of Ironworker

The notching station is designed for clean and accurate removal of material from the edges of flat bars, angle steel, and sheet metal. Its specialized tooling makes it easy to create rectangular or shaped notches required for joint preparation and assembly work.

Key practical advantages:

Versatile notching capability
Effectively processes both flat bars and angle sections, supporting a wide range of fabrication needs.
Precise positioning
Equipped with three gauging stops that allow operators to set exact notch locations quickly and repeatedly, improving consistency across multiple parts.
Enhanced operator safety
Features an electrical interlock safety guard that prevents operation when the guard is open, reducing the risk of accidents during use.

This station helps workshops prepare clean, accurate notches with less manual measuring and rework, making subsequent welding and assembly faster and more reliable.

Ironworker Machine Specification

Model	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Pressure	65T	90T	120T	160T	200T	250T
Max.cutting thickness	16MM	20MM	25MM	30MM	40MM	50MM
Plate strength	≤450N/MM2	≤450N/MM2	≤450N/MM2	≤450N/MM2	≤450N/MM2	≤450N/MM2
Cutting angle	7°	8°	8°	8°	8°	8°
Shearing size of one stroke	16X250MM 8X400MM	20X330MM 10X480MM	25X330MM 16X600MM	30X330MM 20X600MM	35X400MM 25X700MM	40X400MM 30X750MM
Ram stroke	80MM	80MM	80MM	80MM	80MM	80MM
Number of stroke	12CPM	10CPM	10CPM	10CPM	10CPM	10CPM
Throat depth	300MM	355MM	400MM	600MM	600MM	600MM
Punching thickness	16MM	20MM	25MM	26MM	35MM	40MM
Max.Punching diameter	25MM	30MM	35MM	38MM	40MM	40MM
Power of main motor	4KW	5.5KW	7.5KW	11KW	15KW	18KW
Overall dimension(MM)	1650X800X1800	1830X800X1900	2200X1000X2100	2600X1050X2400	2900X1300X2650	3000X1440X2450
Weight	1600KGS	2200KGS	3800KGS	6300KGS	8800KGS	12800KGS

	Q35Y-16	Q35Y-20	Q35Y-25	Q35Y-30	Q35Y-40	Q35Y-50
Round bar(MM)	φ45	φ50	φ60	φ65	φ70	φ80
Square bar(MM)	40X40	50X50	50X50	55X55	60X60	65X65
90°shearing	125X125X12	140X140X12	160X160X14	180X180X16	200X200X18	200X200X20
45°shearing	50X50X5	50X50X5	60X60X6	60X60X6	100X100X10	120X120X10
90°shearing	125X125X12	140X140X12	160X160X14	180X180X16	180X180X16	180X180X16
45°shearing	60X60X8	70X70X10	80X80X10	80X80X10	80X80X10	80X80X10
I-BAR(MM)	125X74X5	160X86X6	200X102X9	280X124X10.5	300X126X11	320X130X10
Change I(MM)	126X53X5.5	160X60X65	210X75X9	280X86X11.5	300X89X12	320X92X12

Looking for more detailed specifications or a configuration that better matches your production needs? Contact our team to discuss additional parameters, customization options, or to receive a tailored quotation. We’re ready to help you find the right Ironworker Machine solution.

FAQs When Purchase Ironworker Machine

What is the difference between this Ironworker and a regular punching machine or shear? Why choose a multi-station Ironworker?

A regular punching machine or shear performs only one function. The Hydraulic Ironworker combines punching, flat bar shearing, angle/channel cutting, round/square bar shearing, and notching in one machine. This reduces material handling, saves floor space, and improves overall workshop productivity.

Does it support dual-operator simultaneous work? How much efficiency can it improve?

Yes. The dual-piston design allows two stations to operate at the same time (e.g., punching on one side and shearing on the other), significantly increasing output, especially in batch or high-volume production environments.

How do I choose the right tonnage model?

Selection is mainly based on the maximum plate thickness, angle size, and punching diameter you regularly process. We offer models from 65T to 250T and can recommend the most suitable one according to your specific material thickness and profile sizes.

What materials can it process? Can it handle stainless steel or high-strength steel?

Standard capacity is based on carbon steel (≤450 N/mm²). It can process steel plates, flat bars, angles, channels, I-beams, round bars, and square bars. For stainless steel or high-strength steel, thickness capacity should be derated according to the actual material strength.

Is tooling change convenient? How long does it take to change a set of tools?

The punching station uses a quick-change coupling system. Changing punches and dies usually takes only a few minutes, greatly reducing downtime between different jobs.

What safety features does the machine have?

It is equipped with electrical interlock safety guards, large protective covers, foot pedals, and emergency stop buttons to ensure operator safety and comply with industrial safety standards.

Is daily maintenance complicated? Are maintenance costs high?

The hydraulic system is relatively simple. Daily maintenance mainly involves checking hydraulic oil, filters, and lubrication points. Overall maintenance cost is lower than operating multiple single-function machines.

Can the machine be customized according to our special requirements?

Yes. We support customization of punching tonnage, throat depth, station configuration, special tooling, and safety features to meet the specific process needs of different workshops. 9.

Does the purchase include installation and operator training?

Basic installation guidance and operator training are included in the standard package. On-site installation and commissioning by our technicians can be arranged separately if required.

Can we arrange a machine trial or visit an existing customer site before purchasing?

Yes. We welcome customers to conduct machine trials at our factory or arrange visits to existing customer sites using similar equipment, so you can evaluate the actual performance and processing quality firsthand.
