Bending Angle Measurement

Precision Laser Angle Measurement Systems for Press Brakes

Eliminate trial bends and costly material waste. Real-time springback compensation ensures ±0.5° accuracy on the very first bend—compatible with all major CNC press brakes.

Non-contact laser sensors continuously monitor bend angles in real-time, automatically adjusting depth parameters for superior consistency across varying sheet metal batches.

Chat Now

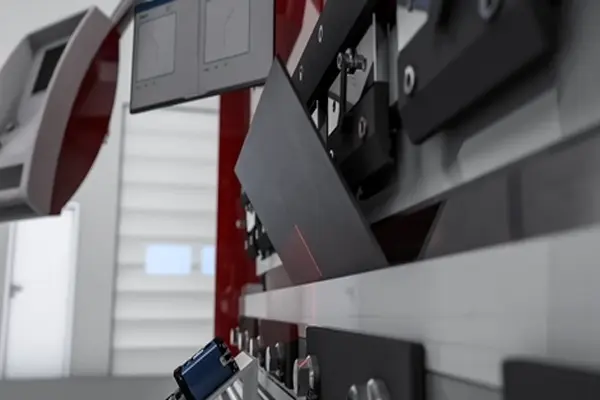

Angle Measurement System

Angle Measurement System

Engineered for demanding sheet metal fabrication, our automated angle measurement system utilizes advanced non-contact laser sensors to continuously track workpiece deformation throughout the stroke. The system instantly measures the live bend angle, automatically calculates material-specific springback in milliseconds, and dynamically instructs the CNC controller to adjust the press brake’s depth (Y1/Y2 axis).

Whether processing stainless steel, high-strength alloys, or varying sheet thicknesses from the same batch, it guarantees strict target angle accuracy (up to ±0.5°) on the very first bend—eliminating manual test bends, reducing setup time by up to 70%, and avoiding wasted material.

Unrivaled Bending Accuracy (±0.5° Precision)
Eliminates guesswork. High-resolution optical sensors measure real-time angular distortion during stroke execution, achieving absolute bend precision within ±0.5° even on challenging materials like high-tensile steel and titanium.

Near-Zero Material Scrap & Instant Cost Savings
Dynamic closed-loop springback compensation continuously adjusts the punch depth before retracting. This completely eliminates first-piece test bends and expensive material scrap—maximizing raw material yield on high-value metals.

Fully Automated Closed-Loop Workflow
Replaces manual protractor checks with automatic real-time angle inspection and CNC parameter correction. Reduces operator workload while preventing costly human errors and batch rework.

Universal Material & Geometry Adaptability
Seamlessly adapts to varying sheet thicknesses, grain directions, surface coatings, and multi-stage complex bend sequences—making it ideal for dynamic job-shop environments and custom OEM manufacturing.

Maximized OEE & Shortened Cycle Times
Real-time angle detection and automated depth correction cut machine set-up times by up to 70%. Faster throughput and zero secondary tweaking significantly boost overall equipment effectiveness (OEE).

Enhanced Shop-Floor Safety & Operator Ergonomics
Hands-free non-contact optical measurement reduces operator intervention near the bending zone, minimizing pinch-point accidents and creating a safer, modern smart factory environment.

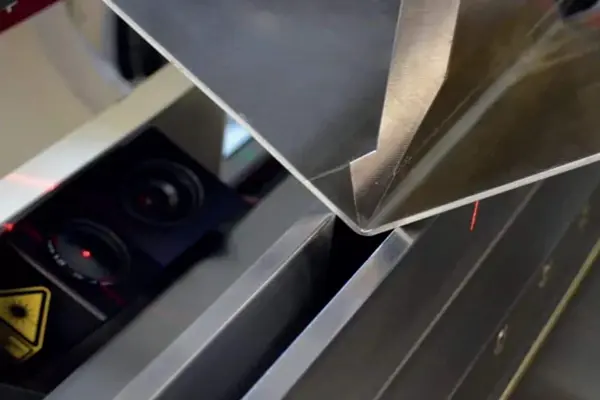

Laser Check Angle Measurement System

Engineered for ultimate metal-forming accuracy, our Laser Check Angle Measurement System transforms traditional press brake operations into a smart, closed-loop optical control process. During the bending stroke, high-precision laser transmitters mounted symmetrically around the bending zone project dual high-contrast laser lines directly onto the sheet metal surface. Advanced optical CMOS sensors capture the reflection trajectories in real time, leveraging high-speed optical triangulation to measure the flange’s live relative angle with sub-millimeter geometry precision—all without contacting, marking, or damaging sensitive surfaces like stainless steel or aluminum.

Instead of pausing operations for manual gauge checks, the system continuously monitors angular deformation throughout the press cycle and transmits precise live angle coordinates to the CNC controller in milliseconds. By dynamically calculating material-specific elastic springback and comparing live readings against pre-programmed design tolerances, the system automatically instructs the hydraulic Y1/Y2 cylinder axes to adjust bottom dead center (BDC) penetration depth before tool retraction. This intelligent feedback loop seamlessly absorbs batch-to-batch sheet thickness variations and grain direction differences, guaranteeing single-pass perfect angle accuracy (up to ±0.5°), drastically cutting set-up times, and realizing zero-scrap production for modern metal fabrication.

Laser Check Angle Measurement System

Sub-Millimeter Optical Precision
Engineered with high-resolution optical laser sensors, the system delivers precise, repeatable angle measurements (up to ±0.5°). It guarantees that every single formed workpiece strictly complies with demanding engineering specifications and tight tolerances.

100% Non-Contact Surface Protection
The laser beam sweeps the bending zone without physical contact, completely eliminating scratches, mechanical indentations, or surface markings. This is ideal for processing mirror-polished stainless steel, coated aluminum, and sensitive architectural alloys.

Live Data Streaming & Instant Feedback
Real-time angle coordinates are streamed instantly to the operator terminal and integrated CNC system during stroke execution. This provides complete process transparency, allowing operators to monitor structural deformation in real time.

Automated Detection & Instant Self-Calibration
The system automatically detects angular drift caused by material springback and batch thickness variations, triggering millisecond self-calibration without manual intervention. This eliminates operator errors and dramatically lowers labor skill requirements.

FAQs When Purchase CNC Angle Measurement System For Press Brake

Can this laser angle measurement system be retrofitted onto our existing older press brakes, or does it only work with brand-new machines?
Our system features a modular hardware and software architecture designed for universal compatibility. It can be easily retrofitted onto both existing older press brakes and integrated into brand-new machines. It supports open communication protocols (such as Modbus TCP, Ethernet/IP, and RS485/CANbus) and directly interfaces with major CNC controllers including Delem (e.g., DA-66T, DA-69T), Cybelec, and ESA. As long as your press brake allows Y1/Y2 axis depth adjustment via CNC signaling, our installation team can complete the hardware mounting and signal calibration within 1 to 2 working days without structural modifications.
No. The sensor assemblies are mounted on compact, heavy-duty linear guide rails on both sides of the upper beam or bed, featuring a motorized automatic retraction mechanism. When processing complex geometric shapes such as deep electrical cabinets, narrow box-channel sections, or using extra-tall gooseneck punches, the CNC system commands the sensors to automatically park outside the tool collision zone during index moves. Once the punch enters the forming phase, the optical sensors quickly slide into position to measure the flange angle without compromising your machine’s maximum open height or stroke distance.
Standard laser sensors often suffer from optical saturation or signal loss on specular surfaces. Our system incorporates high-dynamic-range (HDR) blue-laser optics and auto-gain exposure algorithms. Blue laser light (405nm wavelength) offers significantly higher signal-to-noise ratios on reflective metals compared to traditional red lasers. Combined with intelligent dynamic threshold filtering, the system filters out glare, ambient shop-floor light, and oil film reflections, capturing stable laser line profiles even on 8K mirror stainless steel and oiled cold-rolled sheets with zero loss in measurement integrity.
Yes. The minimum measurable flange length depends on the die V-opening size. Thanks to our narrow-beam laser optical layout and high-magnification CMOS image processors, the system requires a minimum visible flange length of only 12 mm to 15 mm beyond the shoulder radius of the lower die (V-groove edge). For ultra-small component bending, the optical sensing angle can be fine-tuned via quick-adjust mounting brackets, enabling reliable measurements on narrow tabs and small electronics enclosures that competitor systems fail to read.
The system automatically synchronizes with multi-step CNC bending programs. For complex workpieces requiring different consecutive angles—for example, 45° pre-bending followed by 90° or 135° final forming—the control system loads the respective target angle and material springback parameters for each individual step. The optical sensors continuously measure each progressive bend in real time and automatically adjust the Y1/Y2 cylinder stroke per sequence without requiring manual recalculation or operator pausing between steps.
The system operates with a high sampling frequency of 200 Hz (200 data calculations per second) and an internal communication latency of less than 3 milliseconds. Because calculation and depth correction are executed dynamically during the deceleration and pressing phase of the stroke, there is zero pause required at Bottom Dead Center (BDC). Compared to traditional measurement systems that stop at BDC to measure and re-press, our dynamic “on-the-fly” correction increases overall part throughput by up to 25% to 35% per shift.
All sensor heads are housed in IP67-rated, heavy-duty aluminum CNC enclosures equipped with replaceable protective quartz glass windows and built-in positive-pressure air-purge curtains. Connected to your shop’s compressed air supply, the continuous air curtain prevents dust, mill scale, and oil droplets from settling on the optical lenses. Furthermore, internal shock-absorbing mounts isolate the precision optics from structural machine vibrations during high-tonnage sheet impacts.
Daily manual calibration is not required. The system features an automated optical self-zeroing protocol performed upon initial CNC boot-up. If physical calibration is needed after replacing punch/die sets or performing machine maintenance, we provide a high-precision magnetic master calibration block. The operator simply places the gauge onto the bed, runs an automated 60-second calibration routine on the touchscreen, and the system automatically updates its optical spatial coordinates—eliminating human calibration error.
Sheet metal tensile strength and springback behavior vary significantly between batches and relative to rolling grain directions. Rather than relying on rigid look-up tables, our system incorporates an adaptive machine learning springback algorithm. During the initial motion of the press stroke, the system continuously measures the stress-strain deformation curve of the actual sheet being bent. It dynamically predicts the unique elastic recovery angle for that specific sheet and adjusts the final bottoming depth accordingly, ensuring consistent angle outputs even when raw material thickness varies by up to ±10%.
We provide a comprehensive 24-month warranty covering all optical sensors, controllers, and cable assemblies. In terms of technical support, our system comes equipped with an integrated IoT diagnostic gateway. With your permission, our service engineers can access the system remotely via encrypted cloud connection to perform real-time diagnostic checks, firmware updates, and troubleshooting within hours. Additionally, we provide full English video documentation, wiring schematics, and 24/7 dedicated online technical support to ensure seamless global operations.

Have more questions, or need a customized Bending Angle Measurement System solution?
Contact our team for detailed advice, technical support, or a tailored quotation. We’re ready to help you find the right configuration for your production needs.
