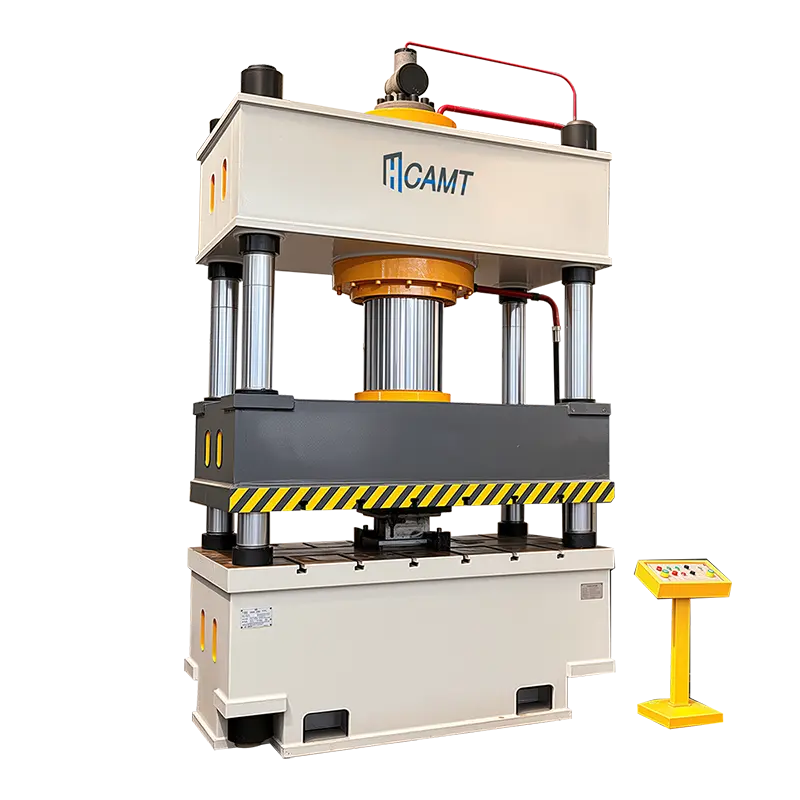

CAMT Y32 4-Column Hydraulic Press | Heavy-Duty Industrial Precision Forming Machine For Sale
The CAMT Y32 is a heavy-duty four-column hydraulic press built for real-world industrial production. Designed around Pascal’s hydraulic principle, it delivers precise, repeatable force through a closed-frame structure of four high-strength steel columns. A hydraulic power unit drives the main cylinder to generate clean linear pressing force, while a precision guiding system keeps the sliding ram moving smoothly and accurately—cycle after cycle.
The four-column design creates a rigid, balanced load-bearing frame that stays true under demanding conditions. Each column is quenched and tempered for long-term strength and fitted with adjustable nuts, so the machine maintains parallelism of ≤0.1 mm/m even when loads are off-center for extended periods. This means less tool wear, more consistent part quality, and fewer adjustments on the shop floor.
The hydraulic system uses two-way cartridge valve technology paired with variable-displacement piston pumps. You get stepless pressure control across a standard range of 10–5,000 tons, fast response (idle speeds up to 300 mm/s), and rock-steady pressure holding with fluctuations held to ≤±0.5 MPa. The result is lower energy use, quicker cycle times, and reliable performance whether you’re forming metals, composites, or plastics.
Y32 4 Column Hydraulic Press Machine Specification
| Parameter | Y32-63 | Y32-100 | Y32-200 | Y32-315 | Y32-400 | Y32-500 | Y32-600A | Y32-630 | Y32-800 | Y32-1000 |
|---|---|---|---|---|---|---|---|---|---|---|
| Nominal Force (kN) | 630 | 1000 | 2000 | 3150 | 4000 | 5000 | 5000 | 6300 | 8000 | 10000 |
| Ejecting Force (kN) | 100 | 250 | 400 | 630 | 630 | 1000 | 1000 | 1000 | 1000 | 1250 |
| Return Force (kN) | 125 | 320 | 450 | 600 | 600 | 1000 | 1000 | 1000 | 1200 | 1250 |
| Slider Stroke (mm) | 500 | 600 | 700 | 800 | 800 | 900 | 900 | 900 | 1000 | 1000 |
| Ejecting Stroke (mm) | 160 | 200 | 250 | 300 | 300 | 355 | 355 | 355 | 350 | 350 |
| Max. Opening Height (mm) | 800 | 900 | 1200 | 1250 | 1250 | 1500 | 1500 | 1500 | 1800 | 1800 |
| Slider Speed – Idle Down (mm/s) | 100 | 100 | 100 | 100 | 100 | 120 | 80 | 120 | 120 | 120 |
| Slider Speed – Work (mm/s) | 9 | 10 | 12 | 12 | 12 | 12 | 12 | 10 | 10 | 10 |
| Slider Speed – Return (mm/s) | 50 | 50 | 50 | 60 | 60 | 80 | 70 | 50 | 100 | 100 |
| Ejecting Speed – Eject (mm/s) | 50 | 80 | 60 | 60 | 60 | 80 | 80 | 65 | 65 | 65 |
| Ejecting Speed – Return (mm/s) | 100 | 160 | 120 | 100 | 100 | 200 | 200 | 200 | 140 | 140 |
| Workbench Size – Left-Right (mm) | 520 | 720 | 900 | 1120 | 1250 | 1400 | 2200 | 1600 | 2200 | 2500 |
| Workbench Size – Front-Back (mm) | 490 | 580 | 900 | 1120 | 1250 | 1400 | 1600 | 1600 | 1600 | 1800 |
| Column Distance – Left-Right (mm) | 650 | 800 | 1140 | 1140 | 1500 | 1700 | 2620 | 1950 | 2600 | 2900 |
| Column Distance – Front-Back (mm) | 350 | 430 | 660 | 900 | 1000 | 1120 | 1120 | 1200 | 1200 | 1350 |
| Overall Dimension – Left-Right (mm) | 900 | 1100 | 1380 | 1160 | 3600 | 3900 | 4700 | 5200 | 6600 | 4650 |
| Overall Dimension – Front-Back (mm) | 500 | 800 | 900 | 1660 | 2300 | 3600 | 3600 | 4600 | 2600 | 2650 |
| Height Above Ground (mm) | 2400 | 2600 | 2725 | 4295 | 4500 | 5220 | 5220 | 6000 | 7200 | 6570 |
| Motor Power (kW) | 7.5 | 11 | 15 | 22 | 30 | 44 | 45 | 60 | 90 | 90 |
Looking for more detailed specifications or a configuration that better matches your production needs? Contact our team to discuss additional parameters, customization options, or to receive a tailored quotation. We’re ready to help you find the right Hydraulic Press Machine solution.

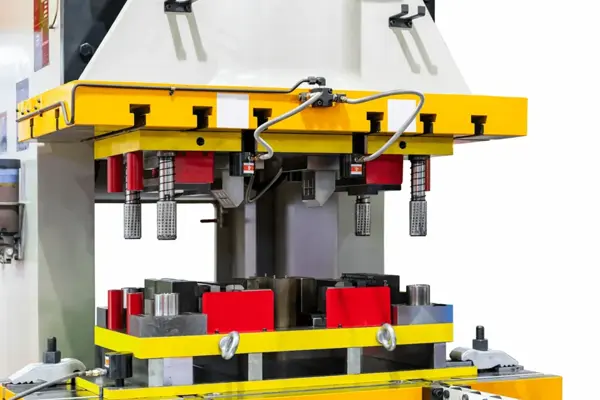

Key Advantages of CAMT Y32 4 Column Hydraulic Press Machine
High-Rigidity Four-Column Frame for Long-Term Accuracy
Four high-strength columns that undergo quenching and tempering, paired with adjustable nuts, maintain parallelism of ≤0.1 mm/m even under prolonged eccentric loads. The result is less tool wear, more consistent part quality, and fewer interruptions for realignment.
Wide Tonnage Range from 10 to 5,000 Tons
The standard series spans from the Y32-63 (630 kN) to the Y32-1000 (10,000 kN), covering everything from small precision components to large structural parts—so you don’t need multiple machine types.
Energy-Efficient Hydraulics with Idle Speeds up to 300 mm/s
Two-way cartridge valve integration combined with variable-displacement piston pumps delivers stepless pressure control and holds pressure fluctuation to ≤±0.5 MPa. Fast idle speeds, stable working force, and lower energy use mean shorter cycle times and reduced operating costs.
Dual Pressure & Stroke Control for Versatile Processes
Operators can switch between pressure regulation and stroke regulation directly on the control panel, with built-in pressure-holding and time-delay functions. One machine easily adapts to stamping, deep drawing, press-fitting, or powder compaction.
Two-Hand & Single-Cycle Modes for Safety and Efficiency
The centralized button control system offers both two-hand operation and single-cycle mode—meeting safety requirements while supporting continuous production. An independent electrical system ensures reliable running and easy maintenance.
Modular Design for Fast Component Replacement
The hydraulic system, electrical system, and key load-bearing components use a modular layout, allowing quicker inspections and faster replacement of wear parts—keeping unplanned downtime to a minimum.

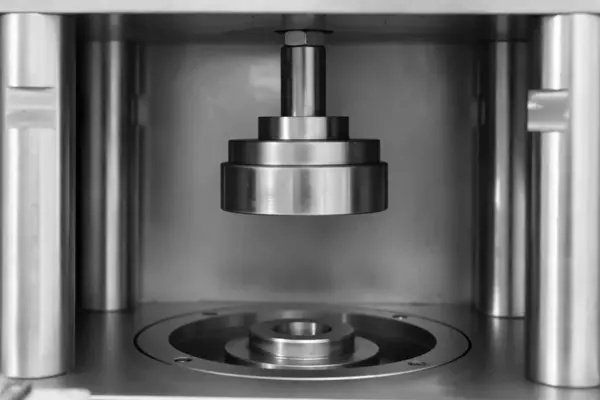

CAMT Powerful Press Solution
The Y32 four-column hydraulic press is built for the demands of real production floors. A rigid closed frame of four high-strength columns supports the machine while a hydraulic power unit drives the sliding ram in a smooth, controlled vertical stroke. This delivers clean, repeatable force for stamping, deep drawing, bending, forming, and pressing of both metals and non-metallic materials.
Because the four-column design keeps the ram guided and parallel even under heavy or off-center loads, you get consistent part quality at high tonnages without constant adjustments. Whether you are running high-volume automotive components or precision powder-metallurgy parts, the Y32 provides the stability and force control that high-precision industrial work requires.

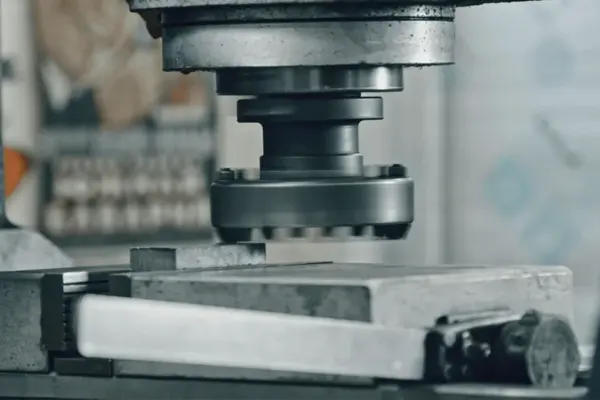

Functional Configuration of Hydraulic Press
Typically includes the following core components
The Y32 is engineered with a computer-optimized three-beam, four-column structure that keeps the machine simple to operate, economical to run, and practical for daily production. The hydraulic system uses an insert-type compact valve block that reduces the number of pipe connections and potential leak points. This design delivers reliable performance with minimal hydraulic shock and a long service life under continuous industrial loads.
An independent electrical control system runs the machine directly and remains easy to maintain. Operators work from a centralized button panel that offers two practical modes: two-hand operation for maximum safety and single-cycle mode for continuous production. Through the same panel, users can switch between pressure regulation and stroke regulation, with built-in pressure-holding and time-delay functions. Both working pressure and stroke length can be fine-tuned within the specified range, so the press adapts quickly to different tooling and process requirements without complex setup.

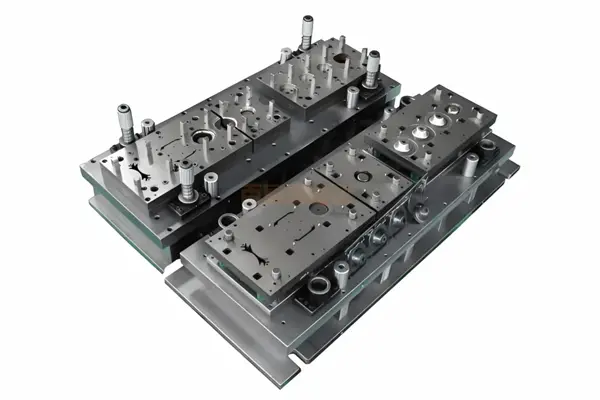

Press Application About Press Machine
Widely used in the following industries
The Y32 four-column hydraulic press is used across a wide range of industrial processes where consistent force and precise control matter. In metalworking shops it handles stamping, deep drawing, riveting, pressing, and straightening of steel and aluminum parts. Plastics manufacturers rely on it for compression molding and the forming of SMC and BMC composite materials. Powder metallurgy producers use the machine to compact metal powders into high-density blanks, while rubber plants apply it for vulcanization and compression molding of seals, gaskets, and technical components.
Automotive suppliers depend on the Y32 for forming structural parts and pressing bearings into housings with repeatable accuracy. In the building-materials sector the press produces refractory bricks and ceramic products that require uniform density and dimensional stability. Across these industries the machine’s rigid four-column frame and adjustable pressure/stroke control deliver the reliability needed for both high-volume production and precision work.
Low energy consumption and high efficiency
The Y32’s four-column structure delivers high rigidity and strong resistance to off-center loads, so the machine maintains precise parallelism and consistent part quality even during long production runs. Standard models cover a wide capacity range from tens of tons up to several thousand tons, allowing the same series to handle everything from small precision components to large structural parts.
Variable-displacement pumps or optional servo hydraulic systems cut energy use while improving response speed and overall efficiency. Operators can select from multiple working modes and fine-tune pressure, stroke, and timing parameters to match different processes without complex retooling. Multi-layer safety protection reduces the risk of equipment damage and operator injury, while the modular layout of major components makes routine inspection and replacement fast and straightforward—keeping downtime to a minimum.
Related Products
FAQs When Purchase Y32 4 Column Hydraulic Press Machine
What is the typical lead time from order to delivery?
Can the machine be customized for our specific tooling or process?
What kind of after-sales support do you provide for overseas customers?
What power supply and foundation requirements does the press need?
How noisy is the machine during operation?
Are spare parts readily available, and how long do they take to ship?
Does the press come with CE or other international certifications?
What operator skill level is needed to run the machine safely and efficiently?
How is the machine packaged and shipped for overseas delivery?
What is the expected service life under normal industrial use?
Have more questions, or need a customized Hydraulic Press Machine solution?
Contact our team for detailed advice, technical support, or a tailored quotation. We’re ready to help you find the right configuration for your production needs.
