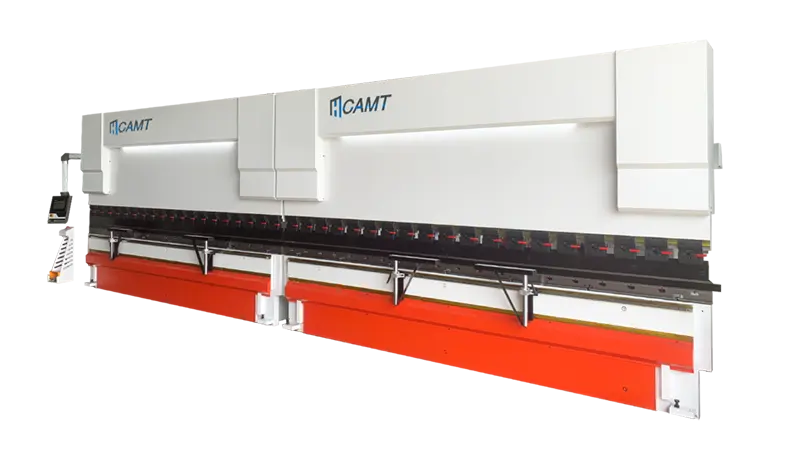

Tandem Press Brake with Dual Linkage Solution
- Perfect synchronization for complex multi-stage bends
- Uniform force distribution — zero deformation, minimal angle deviation
- 40% energy saving with eco-friendly servo system
- Faster productivity: process large or multiple workpieces simultaneously
- Refined Y1/Y2 control & lower error rate
The CAMT Popular Synchronous Press Brake Smart 3-4 Axis is built for shops that need reliable precision without overpaying.
Available in bending lengths from 1.6 to 6 meters and capacities from 40 to 600 tons, it covers the majority of everyday and demanding sheet-metal jobs. Whether you run short batches or continuous production, the machine can be configured to match your exact parts and workflow.
At its core is our proprietary control system with a large 21.6-inch high-resolution touchscreen. It delivers fast, accurate bend calculations and automated arc bending, so operators spend less time programming and more time producing good parts. You can also choose proven industry controllers — DELEM DA-53T / DA-58T, Cybelec CybTouch 12, or ESA 640 — according to your team’s preference.
The integrated servo drive runs 20–30% faster than conventional systems while generating minimal electromagnetic interference. The result is shorter cycle times, higher daily output, and lower energy costs — all at a competitive price that keeps your cost per part under control.
Every frame is precision-machined for excellent horizontal and vertical accuracy. Combined with refined Y1/Y2 synchronization, the machine maintains consistent angles and long-term reliability with minimal maintenance.
In short: a practical, high-performance synchronous press brake that helps you bend more accurately, produce faster, and stay competitive.
Tandem Press Brake with Dual Linkage Specification
| Parameter | Specification |
|---|---|
| Model | CAMT Dual Linkage Tandem Press Brake |
| Configuration | Two synchronized machines (parallel or opposite arrangement) |
| Total Bending Force | 400 – 1200 Tons (2 × 200T / 2 × 300T / 2 × 400T / 2 × 600T optional) |
| Total Bending Length | 8000 – 16000 mm (8m+ capability) |
| Single Machine Length Options | 4000 / 5000 / 6000 / 8000 mm |
| Throat Depth | 400 – 600 mm |
| Open Height | 450 – 600 mm |
| Stroke | 200 – 320 mm |
| Approach Speed | 160 – 200 mm/s |
| Working Speed | 8 – 12 mm/s |
| Return Speed | 120 – 160 mm/s |
| Y1/Y2 Axis Accuracy | ±0.01 mm |
| Synchronization Accuracy | ≤ ±0.02 mm/m |
| Backgauge System | CHTR Rear BGA, X-axis travel 600 mm, speed 300 mm/s |
| Control System | 21.6-inch HD touch screen / DELEM DA53T / TECHMATION SCS700 / CAMT proprietary CNC |
| Axes Controlled | Y1, Y2 + X, R (optional Z1/Z2, crowning) |
| Hydraulic System | Full closed-loop electro-hydraulic servo (BOSCH-REXROTH / ESTUN) |
| Position Feedback | Italy GIVI Magnetic Scale (resolution 1 μm) |
| Crowning System | High-precision multi-point mechanical crowning |
| Main Motor Power | 2 × 15 – 2 × 37 kW (depending on tonnage) |
| Energy Saving | Up to 40% compared with traditional hydraulic systems |
| Electrical Components | Schneider Electric (France) |
| Working Mode | Independent single-machine operation or synchronized dual-machine linkage |
| Applicable Workpieces | Ultra-long / ultra-wide plates for ships, bridges, architectural structures |
| Machine Weight (approx.) | 28 – 85 Tons (depending on configuration) |
| Overall Dimensions (L × W × H) | Customized according to selected length and tonnage |
Looking for more detailed specifications or a configuration that better matches your production needs? Contact our team to discuss additional parameters, customization options, or to receive a tailored quotation. We’re ready to help you find the right Press Brake solution.
Key Advantages of CAMT Tandem Press Brake with Dual Linkage Solution
Full-Length Bending Over 8 Meters — No More Splicing
Process plates longer than 8 meters in one continuous bend. Ship panels, bridge girders, and large architectural sections come off the machine complete—consistent angles from end to end, zero splice joints.
Work Linked or Independent — One System, Two Machines
Sync both machines for ultra-long parts, or run them separately to handle two shorter jobs at the same time. You get the reach of a giant press without locking yourself into a single oversized machine.
Perfect Force Balance — No Twist, No Angle Drift
Closed-loop servo control and high-precision feedback keep both rams aligned to ±0.01 mm. Force stays even across the entire length, so long plates stay flat and angles stay true—no more scrap from spring-back or twist.
Complex Multi-Stage Bends in a Single Setup
Run intricate multi-angle sequences without re-clamping. Large structural parts that used to take multiple setups now finish in one cycle—faster throughput and tighter consistency.
Lower Cost Than a Single Oversized Machine
Deliver 8–16 meter capacity with two standard machines instead of one massive unit. Purchase price is lower, shipping is easier, and foundation work is simpler—real money saved before the first part is bent.
Up to 40% Less Energy — Lower Operating Cost Every Day
The full closed-loop electro-hydraulic servo system uses up to 40% less power than traditional hydraulics. Lower electricity bills and less heat mean the machine costs less to run for the life of the equipment.
FEA & Stress Analysis of Press Brake
Stress Analysis & Finite Element Analysis
CAMT uses advanced Finite Element Analysis (FEA) to design a stronger, more precise, and longer-lasting press brake.
By simulating real working conditions, our engineers identify high-stress areas in the frame and reinforce them where it matters most — while removing unnecessary material elsewhere. This results in higher structural strength without adding extra weight or cost.
Under extreme loads (up to 600 tons), FEA accurately predicts how the machine will deform. We use these insights to keep deflection under strict control, ensuring stable Y1/Y2 synchronization and consistent bending angles across the full length.
The analysis also evaluates stress concentrations to reduce the risk of fatigue or cracking over years of daily use, giving you long-term reliability and peace of mind.
In addition, dynamic simulations test the machine under high-speed operation and tandem bending conditions. This allows us to optimize servo response and minimize vibration, so the press brake remains precise and stable even in demanding production environments.
Taiwan TECHMATION SCS700 Automation
Overseas After-Service Support Bending System
- Large, high-resolution industrial touchscreen delivers clear graphics and fast response
- Dual-language operation with customizable logo/image to match your company branding
- One-touch color theme switching for better visibility under different lighting conditions
- Robust industrial-grade display ensures stable performance in harsh workshop environments
- Advanced MEC4 embedded system offers high reliability and flexible customization
- Expandable design supports future upgrades: extra axes, USB, CAN bus, and automation interfaces
DELEM DA53T Touch CNC System
Stragetic Cooperation with DELEM/CYBELEC to Satisfied Usage Habit
- Large 10.1" high-resolution color screen makes programming clear and comfortable
- Smart “Hot-key” touch navigation reduces training time and speeds up daily operation
- Supports up to 4 axes (Y1/Y2 + 2 auxiliary), ready for more complex parts
- Tool, material and product libraries help operators set up jobs faster and with fewer errors
- Advanced Y-axis control works with both closed-loop and open-loop valves, delivering high precision
- Built-in CNC crowning control improves angle consistency across the full length
- USB interface allows quick program transfer and backup
- Free Profile-53TL offline software lets you prepare programs in the office, maximizing machine uptime
Intergral Advanced CNC Control System
More Than 10 Years R&D CNC Control
- 21.6-inch full-color HD touchscreen: Large, bright, and easy to read—even in a busy shop. Operators see everything clearly and navigate with simple touch controls instead of hunting through menus.
- True one-page programming: All the data you need sits on a single screen. Change bend curves, angles, or sequences in
- Full 4-axis control ready for 4+1+2: Handles advanced multi-axis bending right out of the box. Supports the most demanding 4+1+2 configurations without extra upgrades.
- Rock-solid Linux platform: Boots fast, runs stable, and can be powered off at any time—no shutdown sequence, no risk of data corruption. Built for the real shop floor.
- Smart bending that gets new operators up to speed fast: Automatic bend calculation, programmable speed for every step, controlled slow-down and mid-stop, plus one-touch tooling alignment on the home screen. New operators become productive in hours, not days.
- Ready for automation from day one: Multiple industrial interfaces make it simple to drop the machine into an automated production line and run it as a full bending cell.

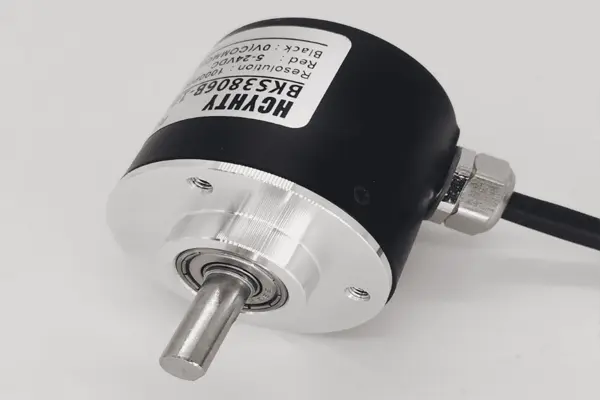

Composition of the Tandem Press Brake
CAMT Dual Linkage Device
- Central brain that keeps both machines moving as one: The control system runs pre-set programs and uses high-precision algorithms to calculate ram position and angle in real time. Both machines stay locked together throughout the entire bend cycle.
- Constant real-time position feedback: Grating scales, encoders or laser sensors continuously measure where each ram is and what angle it is at. That data goes straight back to the CNC so both machines follow the exact same path—no drift, no lag.
- Servo valves that deliver exact force when you need it : High-response servo valves precisely manage oil flow and pressure. The result is smooth, synchronized ram movement even under heavy loads, with the speed and accuracy needed for long, thick plates.
- Instant communication between the two machines: Industrial Ethernet or dedicated protocols keep both control systems talking in real time. Commands and feedback travel fast, so the machines never fall out of sync.
- Balanced force across the full length: The system actively prevents uneven pressure caused by plate misalignment. Force stays evenly distributed between both machines, eliminating twist and keeping angles consistent from end to end.
Italy Importaed Maganetic Ruler - Precise Postioning and On-time Reaction
GIVI MISURE
Engineered with a high-precision resolution down to 1$\mu m$, the GIVI magnetic scale delivers rapid response, robust environmental interference resistance, and durable, low-maintenance performance. Its non-contact design thrives in harsh working conditions while supporting multi-axis control and various interface protocols, ensuring seamless integration with CNC systems to significantly enhance automation. By dramatically boosting the bending machine’s positioning accuracy, production efficiency, and reliability, it meets the stringent demands of modern metal processing

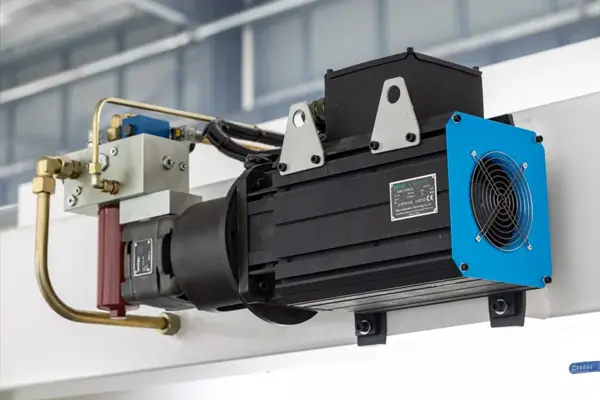

Fully ESTUN FULL SERVO/DRIVE System for Hydraulic Press Brake
The drive system that gives your press brake precise control, lower energy use, and day-in, day-out reliability. Better part quality, faster cycles, and safer operation—built for modern CNC bending.
What it actually delivers on the shop floor:
- Precise motion control: Every ram movement is tightly controlled. You get consistent bend angles and repeatable results, part after part.
- Fast dynamic response: The system reacts instantly to changes in load or position. No lag, no overshoot—even on heavy or varying thickness plates.
- Smarter energy management: Power is used only when needed. Idle time and unnecessary heat are cut, so the machine runs cooler and costs less to operate.
- High precision with rock-solid stability: Maintains tight tolerances throughout the stroke. Long production runs stay accurate without constant operator adjustment.
- Quick response under real loads: High-speed reaction keeps cycle times short while protecting the machine and the part.
- Energy efficient and easy to integrate Up to significantly lower power consumption than traditional systems, and ready to drop into automated cells without complicated interfaces.

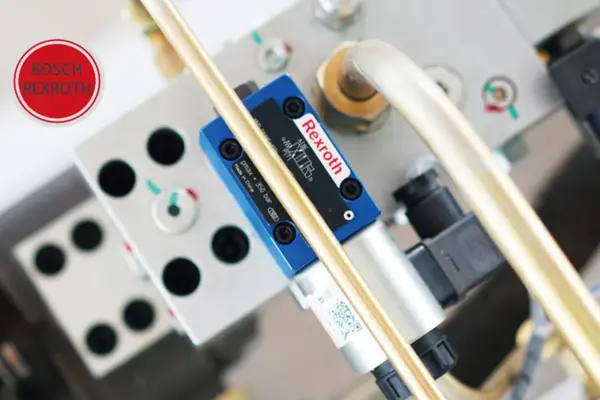

CAMT Party with Top-Tier Closed- Loop Control Technology
Germany BOSCH-REXROTH Hydraulic System
Micrometric Precision (±0.01mm): High-performance proportional valves and closed-loop control deliver real-time feedback and automatic error correction, ensuring consistent, flawless bending across diverse materials.
20%-30% Energy Savings: Intelligent flow and pressure regulation cuts power consumption while maintaining rapid response times and peak hydraulic performance.
Smart Diagnostics & Compliance: Built-in intelligent diagnostics minimize maintenance downtime while meeting stringent CE and ISO international safety standards.
Flexible & Future-Ready: Adapts dynamically to complex bending tasks, driving efficient, smart, and cost-effective manufacturing operations.

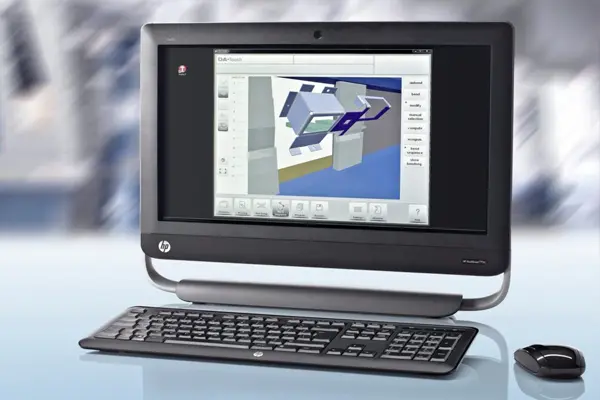

Bending Offline Programming Software
Precise Effectiveness & Muti-Point Crowning of Press Brake Machine
Key Technical Advantages of Profile-T3D
As an indispensable intelligent tool for modern sheet metal fabrication, Profile-T3D provides three core benefits: Rapid import and automatic unfolding of 3D engineering drawings; intelligent optimization of tool configuration and bending sequences; and advanced 3D dynamic simulation to preemptively detect collision risks, ensuring safe and reliable processing.

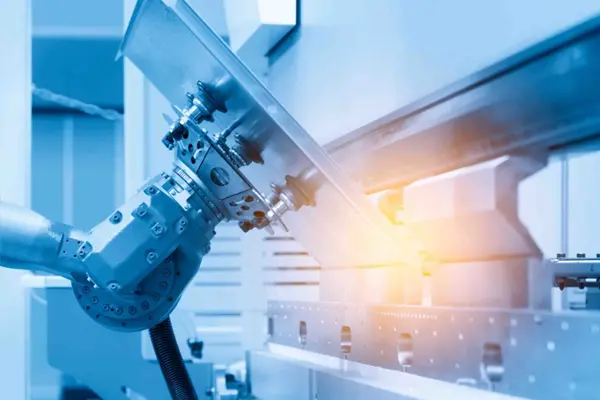

The Next-Gen Smart Manufacturing Automation Solution
Driven by the CAMT® intelligent control hub and an advanced Industrial IoT (IIoT) platform, our solution bridges devices, systems, and the cloud to create a seamless digital manufacturing ecosystem.
Seamless Integration: Multi-protocol compatibility, plug-and-play interfaces, and cross-platform collaboration effortlessly connect CAD/CAM workflows and machinery.
Real-Time Intelligence: Lightning-fast remote response, complete data acquisition, and live monitoring eliminate blind spots on the shop floor.
Proven Reliability: Standardized connectivity, military-grade data security, and modular scalability have already helped hundreds of enterprises slash integration costs.
From remote cloud collaboration to automated production, we provide the robust technological backbone needed to make your smart factory smarter, faster, and more efficient.
Related Products
FAQs When Purchase Tandem Press Brake with Dual Linkage Solution
How accurate is the synchronization between the two machines?
Can the two machines work independently?
What bending lengths and tonnages are available?
How do you prevent twist or angle deviation on long plates?
How much energy does it actually save compared with traditional machines?
How difficult is it for operators to learn and use?
What about transportation, installation, and foundation requirements?
Can it be integrated into an automated production line?
What after-sales support and spare-parts availability can we expect?
Why choose dual-machine linkage instead of one large single machine?
Have more questions, or need a customized Press Brake solution?
Contact our team for detailed advice, technical support, or a tailored quotation. We’re ready to help you find the right configuration for your production needs.
