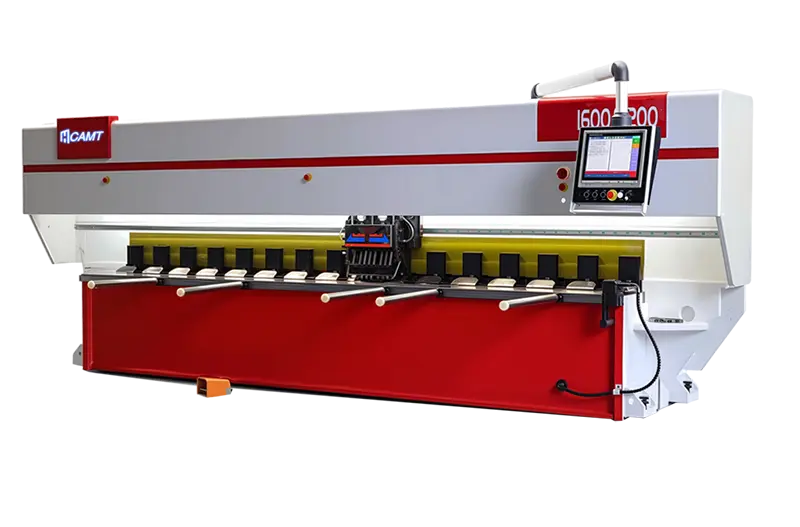

CAMT HMV Series Vertical V Grooving Machine For Sale
- Heavy-Duty Rigid Frame
- High-Speed Efficiency
- Ultra-Precise Control
- Smart & Easy Operation
- Energy-Efficient Clamping
The HMV Series is a next-generation vertical V-grooving machine designed to outperform traditional equipment in every critical aspect — rigidity, speed, and long-term accuracy.
Built on a robust frame structure joined by high-strength bolts, the machine delivers exceptional overall rigidity with minimal deformation under heavy loads. The fixed beam design combined with a precision feeding system ensures the replaceable worktable maintains flatness within ±0.03 mm, giving you consistent groove quality across every sheet.
Every major component is optimized through finite element analysis. Steel plates are CNC-milled before welding to eliminate gaps, then stress-relieved in a tempering furnace. The result is a machine that holds its precision for years, not months — even under continuous high-volume production.
Operation is straightforward and intelligent. The Taiwan Yitu touchscreen control system automatically calculates inner and outer diameters, supports stepless speed adjustment, and allows you to input groove dimensions either by quick numeric entry or by drawing. Setup is fast, intuitive, and requires minimal training.
Powered by Taiwan Yitu servo motors, the HMV Series achieves slotting speeds of up to 130 meters per minute while maintaining high positioning accuracy and remarkably low noise. This combination of speed, precision, and quiet operation helps you increase throughput without sacrificing quality or operator comfort.
Whether you are processing stainless steel, aluminum, or other sheet metals, the HMV Series delivers the heavy-duty performance and day-to-day reliability that modern fabrication shops demand.
HMV Series Vertical V Grooving Machine Specification
| Model Name/Number | 1250/3200 | 1600/3200 | 1250/4200 | 1600/4200 | 1600/5200 | 1600/6200 |
|---|---|---|---|---|---|---|
| Max. Material Width (mm) | 1250 | 1600 | 1250 | 1600 | 1600 | 1600 |
| Max. Material Length (mm) | 3200 | 3200 | 4200 | 4200 | 5200 | 6200 |
| Max. Material Thickness (mm) (Stainless steel, flatness <3 mm) |
4 | 4 | 4 | 4 | 4 | 4 |
| Min. Material Thickness (mm) | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 | 0.5 |
| Min. Distance from Edge to V-Groove (mm) | 8–10 | 8–10 | 8–10 | 8–10 | 8–10 | 8–10 |
| Cutting Speed (m/min) | 55 | 55 | 55 | 55 | 55 | 55 |
| Tool Holder Left-Right Movement Resolution (mm) | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
| Left-Right Positioning Accuracy (mm) | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Tool Holder Up-Down Movement Resolution (mm) | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 | 0.001 |
| Up-Down Positioning Accuracy (mm) | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 | ±0.01 |
| Main Servo Motor Power (kW) | 4 | 4 | 4 | 4 | 4 | 4 |
| Hydraulic System Working Pressure (MPa) | 6–8 | 6–8 | 6–8 | 6–8 | 6–8 | 6–8 |
| Machine Dimensions (L × W × H, mm) | 4600 × 2700 × 2100 | 4600 × 3000 × 2100 | 5600 × 2700 × 2100 | 5600 × 3000 × 2100 | 6600 × 3000 × 2100 | 7600 × 3000 × 2100 |
Looking for more detailed specifications or a configuration that better matches your production needs? Contact our team to discuss additional parameters, customization options, or to receive a tailored quotation. We’re ready to help you find the right V-Grooving Machine solution.
Key Advantages of CAMT HMV Series Vertical V Grooving Machine
Heavy-Duty Frame Structure for Superior Rigidity
The machine adopts a full frame structure connected by high-strength bolts. Combined with finite element optimization, CNC milling before welding, and stress-relief tempering, it delivers excellent overall rigidity and minimal deformation even under continuous heavy loads.
Ultra-Precise Positioning Accuracy of ±0.01 mm
Tool holder movement resolution reaches 0.001 mm in both left-right and up-down directions, with positioning accuracy of ±0.01 mm. The replaceable worktable maintains flatness within ±0.03 mm, ensuring consistent, high-quality V-grooves across every sheet.
High-Speed Slotting up to 130 m/min
Powered by Taiwan Yitu servo motors, the machine achieves stepless speed adjustment and a maximum slotting speed of 130 meters per minute. Rapid response and excellent acceleration/deceleration performance significantly boost production efficiency.
Intelligent Taiwan Yitu Touchscreen Control
The user-friendly touchscreen automatically calculates inner and outer diameters. Operators can input groove dimensions via quick numeric entry or drawing input, making setup fast, simple, and easy to master with minimal training.
Four-Blade System with Even Force Distribution
The advanced four-knife blade configuration evenly distributes cutting forces during operation. This design reduces workpiece deformation, produces smoother and more accurate V-grooves, and extends blade life. An optional micro-cooling system further improves durability.
Energy-Efficient Hydraulic Clamping System
A powerful hydraulic clamping system with accumulator compensation and overflow valve provides firm, consistent workpiece holding. The intermittent motor operation reduces energy consumption while ensuring reliable clamping force and high-speed processing stability.

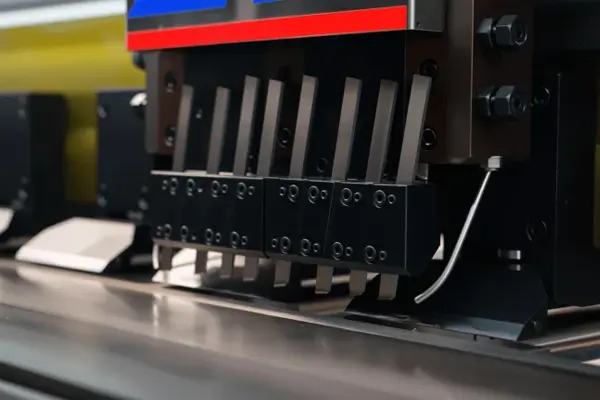

V CUT LLOY BLADE of Grooving Machine
Precision Cutting and Versatility
The blade system on the HMV Series CNC vertical V-grooving machine is engineered for precise, efficient V-groove processing that consistently delivers high-quality results with minimal workpiece deformation.
At its core is a four-knife configuration that evenly distributes cutting forces across the material. This balanced approach keeps the cut stable and accurate throughout the entire operation, reducing vibration and helping maintain tight tolerances even on thinner or more sensitive sheets.
The system supports both longitudinal and transverse slotting, and includes specialized front-and-back processing capability for plates. This flexibility allows operators to handle a wider range of part geometries and production requirements without changing machines or complex setups.
An optional micro-cooling system can be added to further extend blade life by reducing heat-related wear. The result is longer intervals between blade changes, lower tooling costs, and more consistent output over long production runs.
Whether you need smooth, accurate grooves for architectural panels, stainless steel fabrication, or high-volume sheet metal work, this advanced blade system provides the combination of precision, durability, and adaptability that modern manufacturing demands.

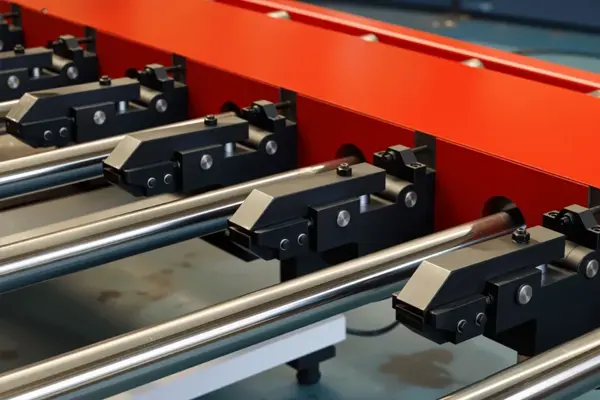

Clamping System of V Grooving Machine
Secure and Energy-Efficient
The HMV Series is equipped with a powerful hydraulic clamping system designed to hold workpieces firmly and securely throughout the entire grooving process. This reliable hold enables the machine to run at high slotting speeds while maintaining consistent clamping force from the first cut to the last.
An integrated accumulator provides continuous pressure compensation, and an overflow valve adds an extra layer of safety and system protection. Together, these features keep the clamping force stable even during rapid cycling, reducing the risk of workpiece shift and helping protect both the material and the machine.
The hydraulic motor operates intermittently rather than continuously. This intelligent design significantly lowers energy consumption without compromising clamping performance, making the system more efficient and cost-effective over long production shifts.
The result is a robust, reliable clamping solution that combines strong holding power with energy savings — exactly what high-precision, high-volume V-grooving operations need.

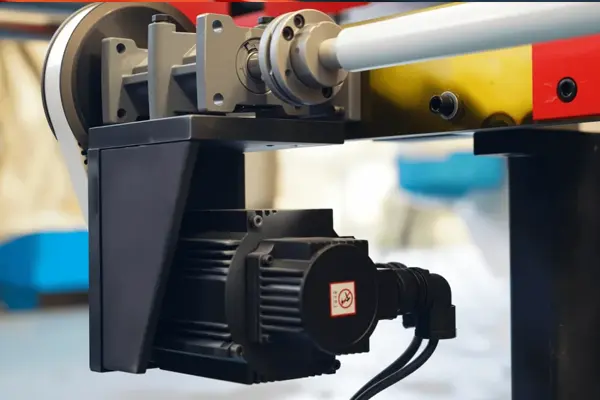

Servo Motor & Drive System of Slotting Machine
High-Precision Control
The HMV Series is powered by a high-performance servo motor and drive system that delivers the responsiveness and control modern V-grooving demands. With rapid response times and excellent acceleration and deceleration characteristics, the system allows the machine to start, stop, and change speeds quickly and smoothly. This is especially valuable when processing complex contours or frequent direction changes, helping reduce cycle times and improve overall productivity.
Unlike traditional stepper motors or continuous hydraulic systems, the servo motors only consume power when under load. This on-demand operation typically reduces energy consumption by 30% to 50%, delivering meaningful long-term cost savings without sacrificing performance.
The system also offers strong overload resistance and maintains stable torque even at low speeds. As a result, vibration and step loss are effectively prevented during continuous operation, ensuring consistent groove quality and reliable performance shift after shift.

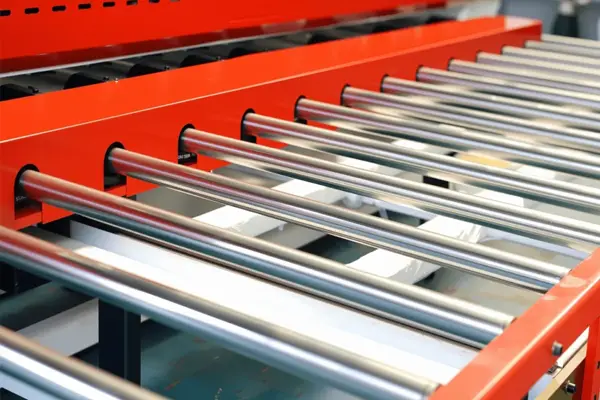

Feeding Device for V Grooving Machine
Convenient Saving Manpower
The HMV Series is equipped with an automatic feeding device that precisely transports and positions workpieces throughout the entire grooving process. Guided by servo motors, precision guide rails, and reliable clamping mechanisms, the system moves each sheet along a preset path at a controlled speed, ensuring stable and accurate positioning from start to finish.
By automatically managing feed rate and workpiece location, the feeding device significantly improves machining consistency while reducing the need for manual handling. Operators spend less time adjusting and monitoring each sheet, which lowers labor intensity, minimizes the risk of human error, and helps maintain higher overall productivity.
Designed specifically for metal sheet processing, this intelligent feeding system makes high-precision V-grooving more efficient, repeatable, and easier to manage on a daily basis.
Related Products
FAQs When Purchase HMV Series Vertical V Grooving Machine
What materials can the HMV Series process?
How much floor space does the machine require?
What are the power and electrical requirements?
How long does operator training take?
What is the expected blade life and how often do blades need replacement?
Do you provide installation and after-sales support for overseas customers?
What is the typical lead time for production and delivery?
Can the machine be customized for special requirements?
How noisy is the machine during operation?
What safety features are included?
Have more questions, or need a customized V-Grooving Machine solution?
Contact our team for detailed advice, technical support, or a tailored quotation. We’re ready to help you find the right configuration for your production needs.
