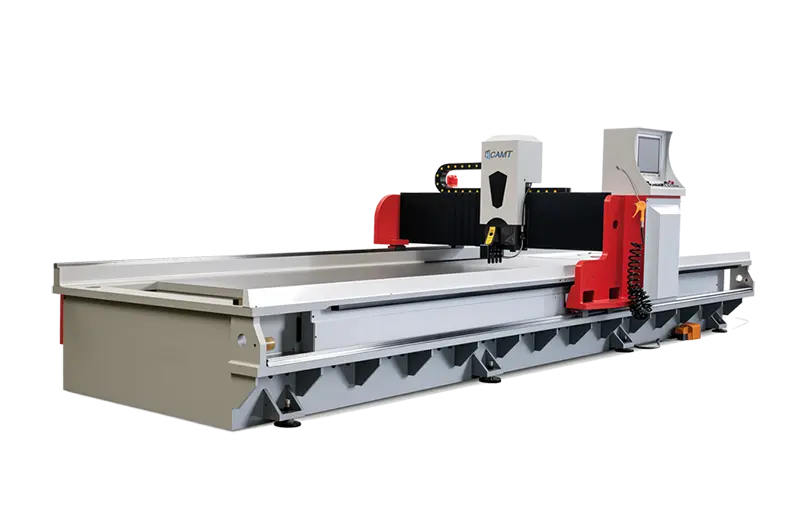

CAMT HMG Series Gantry V Grooving Machine For Sale
When every cut needs to be clean, accurate, and consistent, the HMG Series delivers. Designed with a rigid frame structure and high-strength bolted connections, this gantry-style V-grooving machine provides exceptional overall rigidity and virtually eliminates deformation—even under continuous high-speed operation.
The beam remains fixed while the workpiece is fed automatically, and the adjustable workbench anvil maintains surface flatness within ±0.02 mm. This ensures a perfectly level cutting platform for reliable results across stainless steel and mild steel sheets. Tool-post movement is driven by a synchronous belt system, delivering smooth, efficient left-to-right travel and producing flat, clean groove surfaces every time.
A floor-standing CNC rear feeding unit further enhances performance with high positioning accuracy, stable transmission, and a wide processing range—giving operators the flexibility to handle different sheet sizes with confidence.
The main drive uses V-belt transmission. The natural tension of the belt absorbs impact during sudden stops and rapid direction changes, reducing mechanical stress, protecting critical components, and significantly extending the machine’s service life.
The result is a high-speed V-grooving solution that combines rock-solid stability, precise control, and long-term reliability—exactly what modern fabrication shops need for consistent, high-quality production.
HMG Series Gantry V Grooving Machine Specification
| HMG Series Gantry V Grooving Machine – Technical Parameters | |
|---|---|
| Model | HMG-1250/1500 × 2500/3000/4000/5000/6000 |
| Machining Capacity | Material: STS304 & Q345 |
| Length: 2500 / 3000 / 4000 / 5000 / 6000 mm | |
| Width: 1250 / 1500 mm | |
| Thickness: 0.6 – 4 mm (Sheet Flatness < 3 mm) | |
| Minimum Edge: 8 mm | |
| CNC System | Control Type: 4-Axis CNC (X, Y1, Y2, Z) |
| Display: 15-inch Touch Screen | |
| Memory Capacity: 99 Groups, 9999 Lines/Group (99-line cycle available) | |
| Working System: Linear Guide / Ball Screw / Gear Rack | |
| Speed | Forward Cutting (X-axis): 0 – 90 m/min |
| Backward (X-axis): 0 – 90 m/min | |
| Y1 & Y2 Axes: 20 m/min | |
| Z-Axis (Up-Down): 20 m/min | |
| Machining Precision | Y1-Axis Precision: ±0.01 mm |
| Y1-Axis Max. Stroke: 1250 mm | |
| Z-Axis Precision: ±0.01 mm | |
| Z-Axis Max. Stroke: 50 mm | |
| Driving Mode | X-Axis: 4.5 kW Servo Motor (Taiwan) |
| Z-Axis: 1 kW Servo Motor (Taiwan) | |
| Y1 & Y2 Axes: 1 kW Servo Motor (Taiwan) | |
| Clamping Device | Hydraulic |
| Table Flatness | ±0.02 mm/m |
| Main Power | 380 V / 50 Hz / 3-Phase |
Looking for more detailed specifications or a configuration that better matches your production needs? Contact our team to discuss additional parameters, customization options, or to receive a tailored quotation. We’re ready to help you find the right V-Grooving Machine solution.
Key Advantages of CAMT HMG Series Gantry V Grooving Machine
Rock-Solid Rigidity for Consistent Accuracy
The HMG Series features a high-strength bolted frame structure using 60 mm low-alloy steel and Q345 plates. After natural gas tempering to eliminate welding stress, the machine maintains outstanding overall rigidity with minimal deformation—even during continuous high-speed operation. Table flatness stays within ±0.02 mm/m, giving you reliable accuracy batch after batch.
High-Speed Cutting up to 90 m/min with Smooth Stability
Forward and return speeds on the X-axis reach 0–90 m/min, while Y and Z axes operate at 20 m/min. Synchronous belt drive for the tool post and V-belt main transmission absorb impact during sudden stops and rapid reversals, delivering smooth, efficient cutting with a flat, clean groove surface every time.
4-Axis CNC Precision with ±0.01 mm Positioning Accuracy
Equipped with a 4-axis CNC system (X, Y1, Y2, Z) and a 15-inch touch screen, the machine offers simple keyboard programming, real-time status monitoring, and 99 program groups with 9999 lines each. Positioning accuracy of ±0.01 mm on Y and Z axes ensures precise groove depth and position control across a wide processing range.
Secure Hydraulic Clamping with Energy-Saving Design
The robust hydraulic clamping system securely holds workpieces for high-speed slotting. With accumulator compensation and an overflow valve, it maintains stable clamping force while the intermittent motor operation reduces energy consumption and keeps oil temperature under control—ideal for long production runs.
Four-Knife Alloy Blade System for Reduced Deformation
The blade system uses four knives that evenly distribute cutting load, significantly reducing workpiece deformation. An optional micro-cooling system further extends tool life and lowers production costs. The machine supports both longitudinal and transverse processing, plus front-and-back plate processing for greater versatility.
Self-Repairing Worktable for Long-Term Accuracy
After prolonged use, the worktable can be planed on-site to restore flatness to like-new condition. Combined with heat-treated frame components and high-quality Taiwan servo motors plus HIWIN linear guides, this design ensures lasting precision and lower long-term maintenance costs.

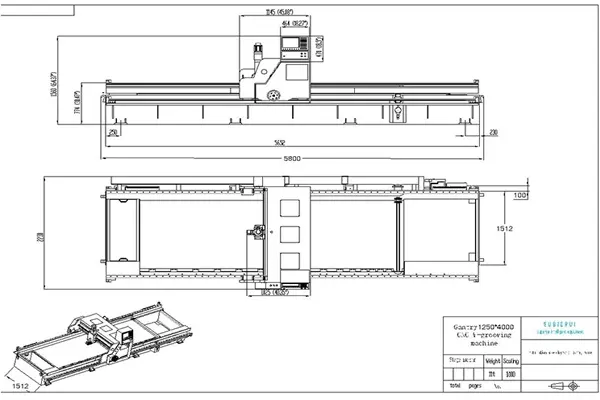

HMG Grooving Machine Frame
Robust and Precision-Engineered
The HMG Series starts with a heavy-duty frame designed for real-world production demands. Both the base and beam use a high-strength structure: the work surface is made from 60 mm low-alloy high-strength structural steel, while the frame is built with Q345 steel plates. This combination delivers outstanding overall rigidity and long-term reliability, even under continuous high-speed operation.
To remove welding stress and minimize deformation, the entire bed undergoes natural gas tempering. A thorough sandblasting process then ensures a clean, durable paint finish that stands up to industrial environments.
The worktable itself includes a practical self-repairing feature. When needed, operators can simply plane the tabletop to restore flatness and maintain machining accuracy over years of use. The result is a stable, flexible platform that keeps delivering consistent performance long after installation.

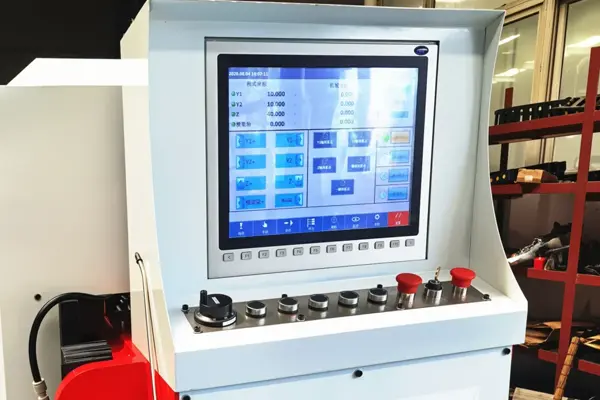

Control System of Slotting Machine
Intuitive and Safe
The HMG Series is equipped with a user-friendly CNC control system designed to make daily operation straightforward and reliable. Operators can input processing programs directly via the keyboard, which significantly reduces setup time and allows quick adaptation to different jobs. Processing speed is easily adjusted with a simple knob, giving operators the flexibility to match cutting conditions to material type or personal preference.
A clear display screen provides real-time visibility of the entire processing status, so operators can monitor progress and make informed adjustments without interruption. Integrated sensors continuously watch for potential hazards, helping protect both the operator and the machine. Should any abnormality occur, the screen immediately shows clear alarm messages, enabling fast troubleshooting and minimizing downtime.
Together, these features create a control experience that is both efficient and secure—ideal for busy production environments where ease of use and safety matter equally.

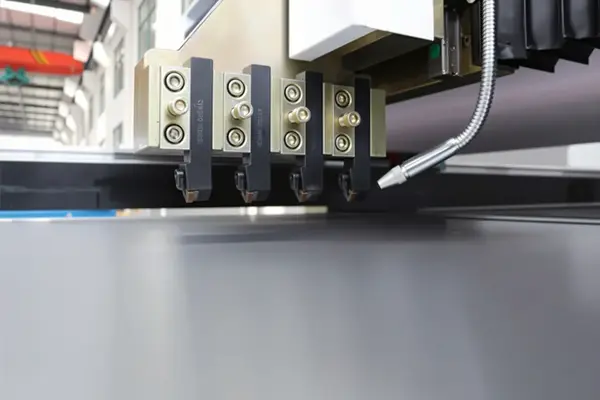

Alloy Blade of V Grooving Machine
Precision Cutting and Versatility
The HMG Series is equipped with a carefully engineered alloy blade system built for clean, accurate V-groove processing. Four knives work together to evenly distribute the cutting load, which significantly reduces workpiece deformation and helps maintain consistent groove quality across the entire sheet.
An optional micro-cooling system can be added to further extend tool life and lower ongoing production costs. Beyond standard operation, the machine supports both longitudinal and transverse processing, and includes a specialized front-and-back function for plates—giving fabricators greater flexibility to handle a wider range of jobs without changing setups.
This combination of precise cutting performance, longer tool life, and multi-directional capability delivers high-quality results while keeping daily operation practical and efficient.

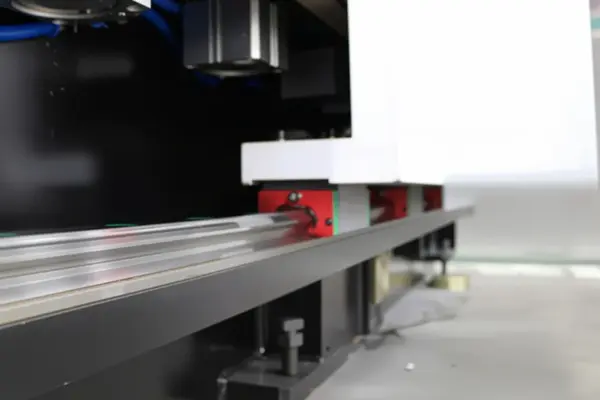

Guide and Drive System About Grooving Machine
Fast and Stability
The HMG Series delivers smooth, high-speed movement through a carefully engineered drive system. A precision copper gear and helical rack combination works together with Taiwan HIWIN heavy-duty linear guides, while frequency conversion allows the moving speed to be adjusted as needed. This setup keeps the cutting process both stable and efficient, even at higher speeds.
The tool holder transfer device further enhances performance by using SFSR silent ball screws and QH silent guide rails. These components reduce vibration and noise while maintaining high positioning accuracy throughout the entire stroke. The result is reliable, precise motion that supports consistent groove quality and long-term operational stability.

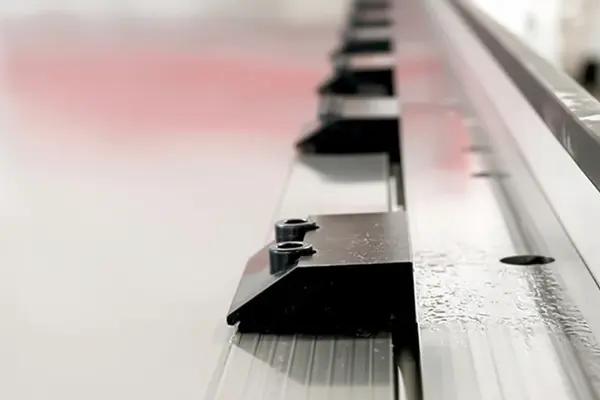

Clamping System of V Grooving Machine
Secure and Energy-Efficient
The Anti-Twist System prevents distortion of the sheet during cutting by combining secure clamping with precise guiding. It firmly holds the material in place to restrict unwanted horizontal movement while distributing cutting forces evenly across the plate. This minimises localised stress, especially on narrow or thin strips that are most prone to twisting.
Working in coordination with the hydraulic system, the device can also adjust clamping force according to material thickness and type, helping maintain flatness under a wide range of cutting conditions. As a result, operators achieve cleaner, straighter edges, reduced sliding and fewer surface marks on sensitive materials such as polished stainless steel or pre-painted sheets. The system lowers the need for rework, improves overall process reliability and expands the machine’s capability to handle high-precision or surface-critical jobs with confidence.
